PCE PCE-LMD 200 ເຄື່ອງວັດແທກແສງສະຫວ່າງ (0 lx ~500 klx; 0.001 lx~ 0.01 klx)

- Light:

Measurement range: 0 lx ... +50 lx

Resolution: 0.001 lx

Accuracy: Total error ≤ 2.0% (CIE, DIN 5032-7) Class A @ 10 ... 40 °C

- Light:

Measurement range: +50 lx ... +5 klx

Resolution: 0.1 lx

Accuracy: Total error ≤ 2.0% (CIE, DIN 5032-7) Class A @ 10 ... 40 °C

- Light:

Measurement range: +5 klx ... +500 klx

Resolution: 0.01 klx

Accuracy: total error ≤ 2.0% (CIE, DIN 5032-7) class A @ 10 ... 40 °C

- General technical data:

Units: lx, klx

Display type: LCD

Display refresh rate: 1 x per second

Storage medium: Micro-SD card

Memory interval of: 1 s

Memory interval up to: 60 s

Memory capacity: 8 GB

Interface: Micro-USB

Standard(s): DIN 5032-7, ISO/CIE 19476, EN 12464-1, EN 12464-2, EN 12665

Operating time: 23 h

Measurement rate: 1 Hz

Classification: A (CIE, DIN 5032-7)

Menu language: English, Polish

Protection class (appliance): IP20

Power supply: 5V DC / max. 2,1A

Weight: 172 g

Device weight with delivery: 1.67 kg

Equipment weight with scope of delivery and outer packaging: 1.71 kg

Dimensions (L x W x H): 118 x 74 x 21 mm

Other dimensions: Probe dimensions: Ø 44 x 25 mm

. Extension rod: approx. 1 metre

Operating conditions: -20 ... 50 °C , 90 % r.H.

storage conditions: -20 ... 50 °C , 90 % RH

Languages of the instructions: English

- Delivery scope:

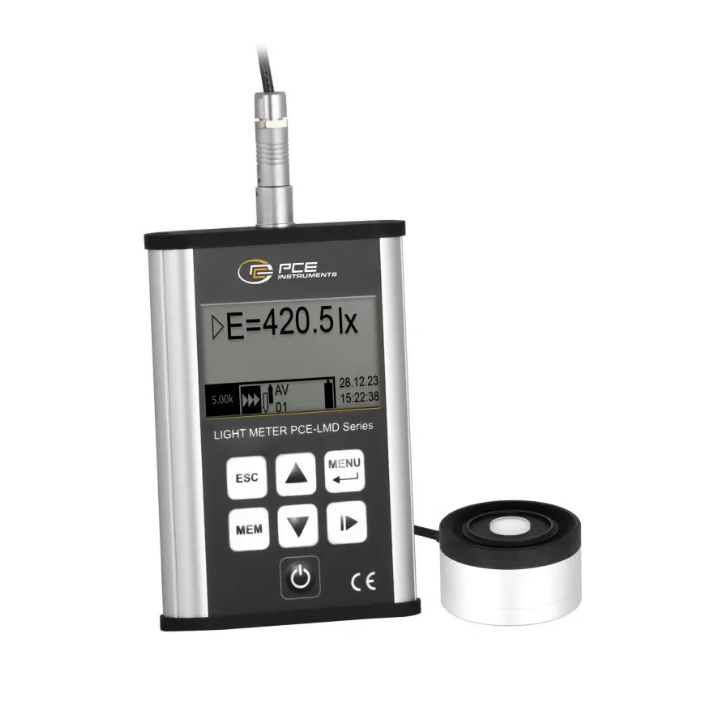

1 x PCE-LMD 200 light meter

1 x lux sensor

1 x micro USB charging cable

1 x 8 GB micro SD memory card incl. adapter

1 x probe holder

1 x long extension rod

1 x USB power supply

2 x operating instructions

1 x transport case
