Specification
Dynamometers with external dynamometric cell: Measuring range / resolution
PCE-FB 5K: 10,000 N (1000 kg) / 2 N ( 200 g)
Uncertainty in measurement: ±0.1 % of measurement range
Gravity zone: manually adjustable or per GPS data
Measurand: N, g, lb, oz, kg, kgf, lbf, ozf
Calibration: with external F2 weights
Max. overload: +/- 20 % above measuring range
Sampling rate: 10 samples / sec. or 40 samples / sec.
Measurement function: Compressive and tensile force measurement / PEAK function (MIN- MAX Hold)/ threshold measurement/ real-time measurement with software
Display: Graphic- Display 61 x 34 mm / automatic Display adjustment / background lights
Menu navigation multilingual: German, English, Spanish
Data storage facilities: internal storage and Mini SD memory card (Internal storage limited to a max. of 6,400 measurements)
Data storage: manually- by key press; automatically- 0.025 s - 99.9 sec. (adjustable)
Interface: serial RS-232, 9-pole and USB
Software: incl. software via download to evaluate and control
Surrounding conditions: - 10 °C ... +40 °C
Power Supply: 4x Ni-MH 2700 mAh AA batteries (replaceable) or via Adapter ~230 V/12 V; 1.2 A incl.
auto OFF function option
Battery life time: approx. 20 hrs. (without background lights approx. 45 hrs.)
Dimensions: 210 x 110 x 40 mm
Internal measuring cell: part for force input: 11 mm long, M6 x 9 mm winding
Cable length of external dynamometric cell: approx. 3 m
Weight without dynamometric cell: approx. 400 g (without the dynamometric cell)
Delivery contents

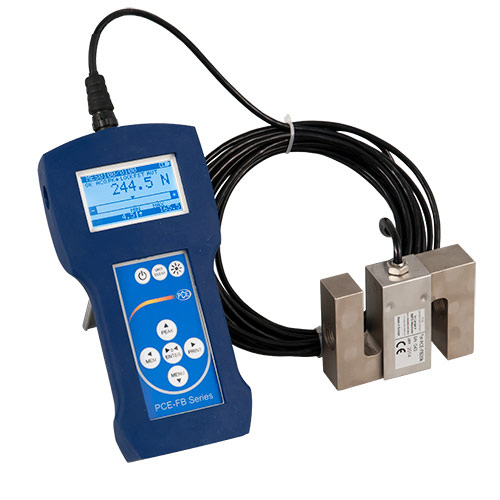

1 x dynamometer PCE-FB 10K
1 x dynamometric cell incl. ring screws
1 x AC adapter
1 x RS-232 data cable
2 x carry bag
