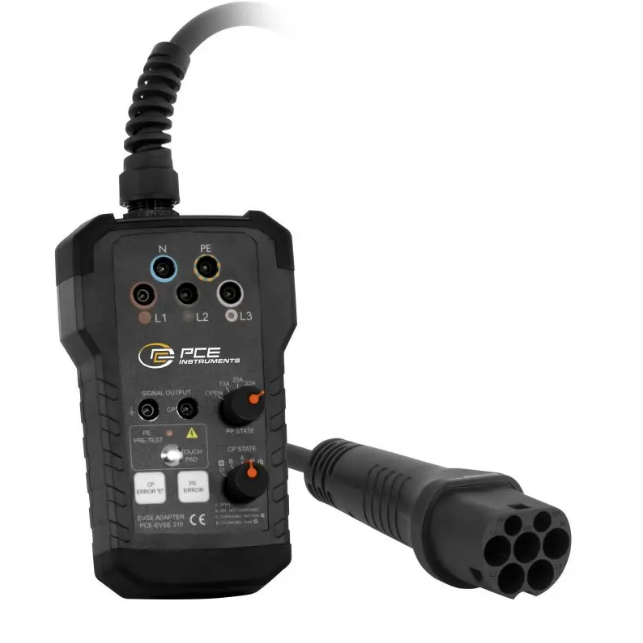

PCE PCE-EVSE 310 ເຄື່ອງທົດສອບ EVSE ລົດໄຟຟ້າ

- Test Functions:

PE pre-test: yes, with capacitive electrode

PP Simulation: open, 13 A, 20 A, 32 A, 63 A

CP Status: A, B, C, D

CP error "E": E

PE fault / earth fault: Yes

- General technical data:

Connections: L1, L2, L3, N, PE

Connections Additional information: max. 230V (1-phase) / 430V (3-phase) ; 50 / 60Hz

10A / 250 V

Type 2 plug fixed to the cable

(optional adapter required for type 1)

Standard(s): IEC62196-2 Type 2 connector

Cable length: 25 cm

Safety standard: CAT II / 300V

Power socket: max. 250 V; 50/60 Hz; 10 A

Outputs: 2 x 4mm sockets (signal output terminals)

Fuse(s)Power socket: T10A/250V

Protection class (device): IP40

Weight: 643 g

Dimensions (L x W x H): 600 x 105 x 73 mm

Operating conditions: 0 ... 40 °C , 80 % r.H.

Storage conditions: -10 ... 50 °C , 80 % r.F

Languages of instructions: German, English

- Delivery scope:

1 x Electric Vehicle EVSE Tester PCE-EVSE 310

1 x operating instructions

1 x transport bag
