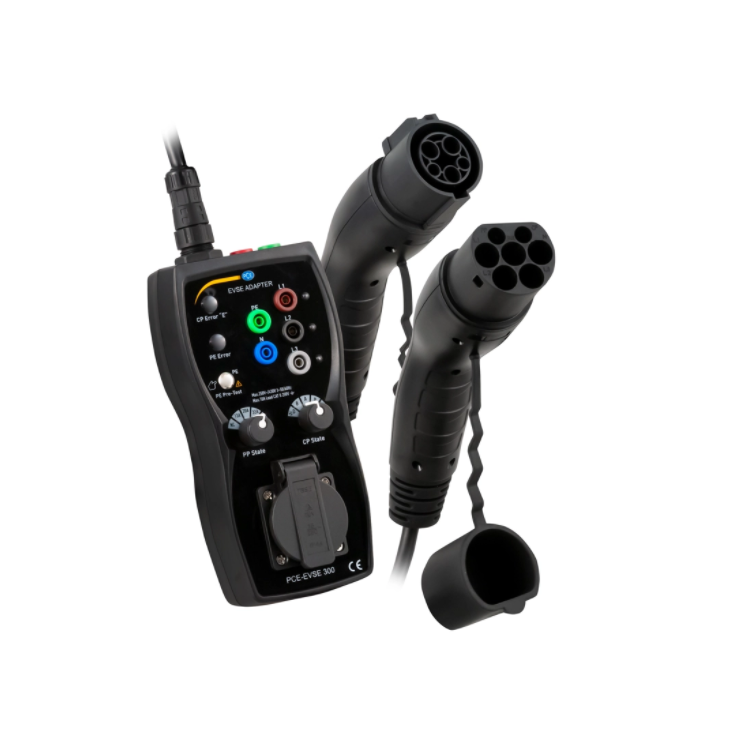

PCE EVSE 300 ອຸປະກອນວັດແທກ EVSE (250 / 430 V AC, 10 A)
Outputs (only for test purposes)
Measuring connections
L1, L2, L3, N, PE
max. 250 / 430 V AC, 10 A
laboratory plug
Schuko connection: max. 250 V AC, 10 A
Fuse from the Schuko connection: fuse F 10 A / 250 V, 5 x 20 mm / 0.19 x 0.78"
CP signal output: ± 12 V PWM
Further specifications
Input voltage: 1 phase: 250 V AC / 3 phase 430 V AC, 50 / 60 Hz, max. 10 A
Measurement category: CAT II 300 V
Protection class: IP54
Pollution degree: 2
Operating conditions: 0 ... 40 °C / 32 ... 104 °F, 10 ... 85% RH, non-condensing
Storage conditions: -10 ... 50 °C / 14 ... 122 °F, 10 ... 60% RH, non-condensing
Maximum working height: max. 2000 m / 6561 ft
Dimensions (handheld only): 277 x 109 x 63 mm / 10.9 x 4.3 x 2.4"
Weight: ca. 1 kg / 2.2 lb
Delivery
1 x EVSE Measuring Device PCE-EVSE 300
1 x Charging cable plug type 1
1 x Charging cable plug type 2
1 x Transport bag
1 x Instruction manual
