Measuring range: 0 ... 50 Nm
Resolution: 0.01 Nm
Accuracy: ± 0.5% of the measuring range
Units of measurement: Nm, lbfft, kgfm
Torque sensor mount: 1/2" (12.5 x 12.5 mm) internal square
Torsion measurement: Left Right
Display: 2.8" TFT graphic display
Alarm modes: Inside Outside
Sampling rate: 6 ... 1600 Hz
Storage: For 100 measurement series with 8,000 measurement points each
Power supply: NiMh battery, 6V / 1600-mAh
Battery life: About 10 hours
Power supply / charging adapter: 12V / 1 A
OutputsInterface: USB
Switching output: 12V / 50-mA
Protection class: IP 54
Operating and storage conditions:
-10 ... 50°C / 14 ... 122°F
5 ... 95% RH non-condensing
Torque transducer dimensions: H 85 mm / Ø 72 mm / Ø 104 mm (H 3.3 in / Ø 2.8 in / Ø 4.1 in)
(see technical drawing)
Sensor cable length / td>: Approx. 1.5 m / 4.9 ft
Dimensions handset: 200 x 97 x 42 mm / 7.9 x 3.8 x 1.7 in
Weight handset: 540 g / 1.2 lbs
Weight of the torsion transducer: 985 g / 2.2 lbs
Delivery scope

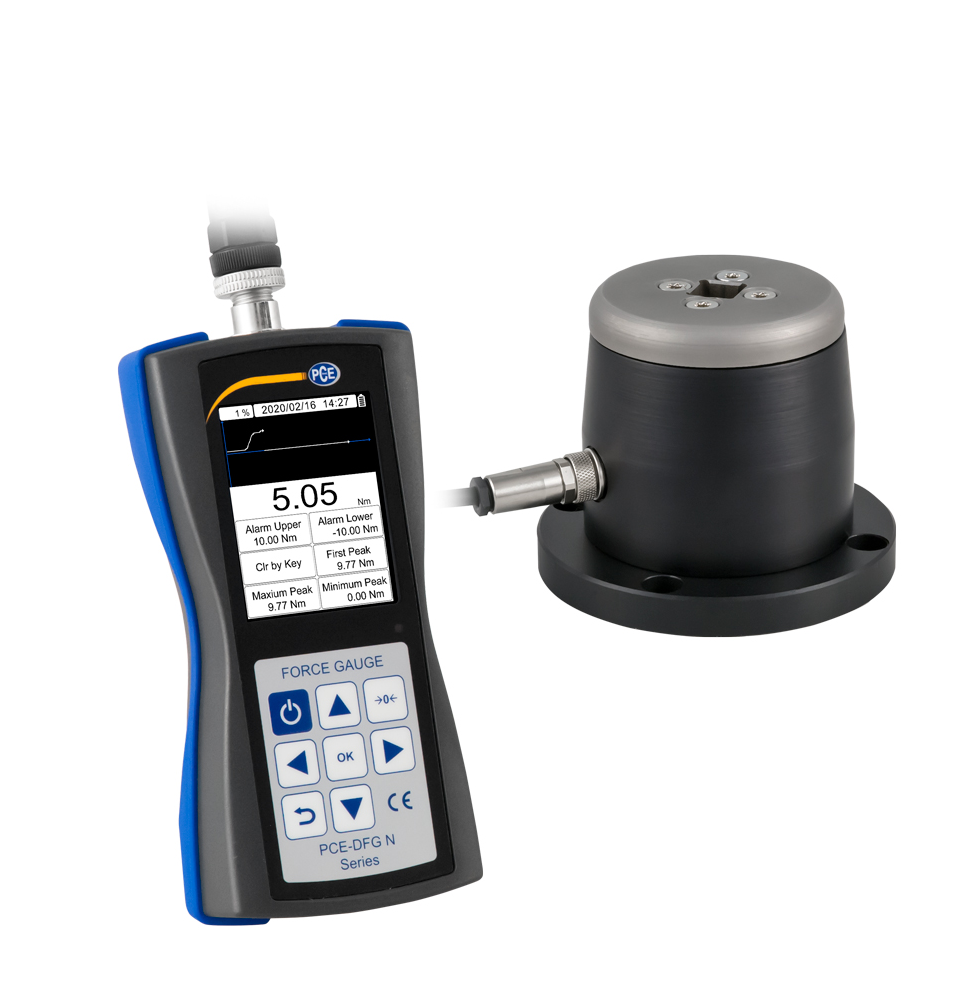

1 x Torque meter PCE-DFG N 10TW
1 x Torque transducer 10 Nm
1 x 1.5 m / 4.9 ft sensor cable
1 x PC software
1 x USB data cable
1 x Power supply
1 x Carrying case
1 x Sensor screw socket
1 x Instruction manual
