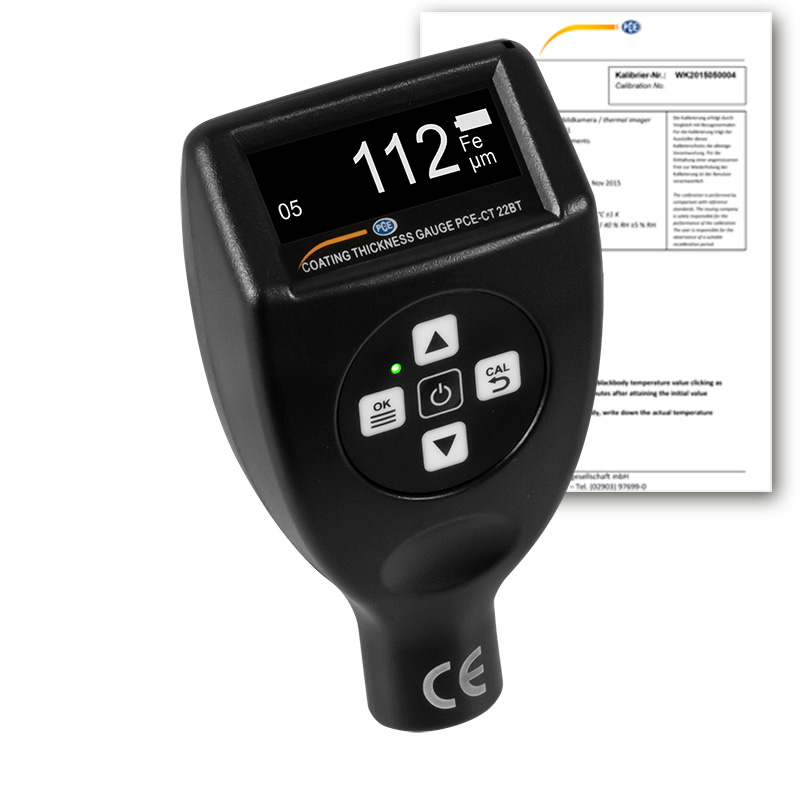

PCE CT 22BT-ICA ເຄື່ອງວັດແທກຄວາມຫນາຂອງເຄືອບ (0~1500 µm)
Measurable substrates: Fe, NFe
Probe: internal
Measuring range: 0~1500 µm
Resolution:
0.1 µm (in the measuring range 0~99.9 µm)
1 µm (in the measuring range 100~1500 µm)
Accuracy: ± (1 µm + 2% of the layer thickness)
Units: µm, mil
Smallest curvature: convex 5 mm, concave 5 mm
Smallest measuring area: 10 x 10 mm
Minimum thickness of the substrate: 0.4 mm
Interface: Bluetooth, micro USB
Memory: 10 groups with 60 measurements each
Power supply: 2 x 1.5 V AA batteries, 5 V USB interface
Environmental conditions: -10… 50 ° C, 10… 85% RH
Dimensions: 126 x 69 x 35 mm (without sensor)
Weight: approx. 97 g (without batteries)
Delivery Scope:
1 x PCE-CT 22BT-ICA Coating Thickness Measuring Device
5 x Calibration foil reference
1 x Fe zero standard
1 x NFe zero standard
1 x Wrist strap
2 x 1.5 V AA batteries
1 x Carrying case
1 x Instruction manual
1 x ISO Calibration Certificate
