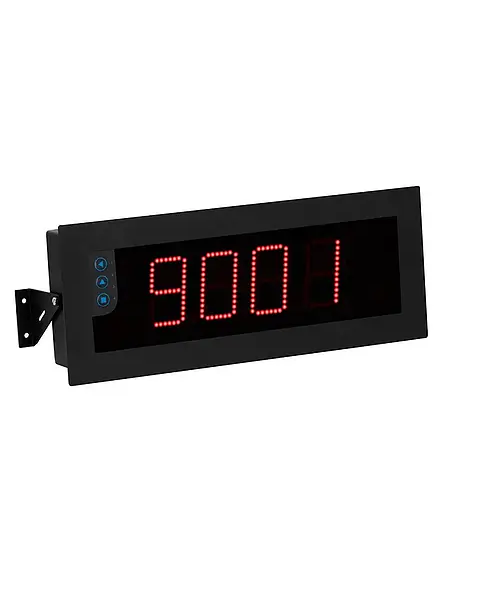

PCE BPD-U-41A ຕົວຊີ້ວັດດິຈິຕອນ Universal
Function: to convert analog signal into a usable value
Input signal: 4 ... 20 mA, ±20 mA DC, 0 ... 10 V DC, ±10 V DC
Maximum input signal: 100 mA or 100 V DC
Input impedance (current measurement): 11 Ω
Input impedance (voltage measurement): 932 kΩ
Number of digits: 4
Digit height: 100 mm / 3.9"
Maximum reading distance: 50 m / 164 ft
Accuracy: 0.05 % of measuring range
Measuring rate: 15 Hz
Response time for value changes from 0 to 99% of the signal: 120 ms
Display range: -1999 ... 9999
Number of outputs: 2
Power consumption: 5.25 W (without optional accessories)
Power consumption: 6.75 W (with optional accessories)
Sensor voltage supply: 20, 15, 10, 5 V DC
Sensor power supply accuracy: ±5 %
Maximum sensor supply current: 35 mA (with short-circuit protection)
Power supply: 85 ... 265 V AC / 120 ... 370 V DC
Weight: 2500 g / 88.1 oz
Delivery Scope:
1 x Digital Universal Indicator PCE-BPD-U-41A
1 x Instruction Manual
