PCE 830-3 ເຄື່ອງວິເຄາະພະລັງງານ
Measurement values: Measurement ranges / resolution / accuracy
PCE-830 + PCE-3007
Watts AC (50 Hz or 60 Hz, PF 0.5 up to 10.0 W to 999.9 W / 0.1 W / ±1% of measurement range:
1.000 kW to 9.999 kW / 0.001 kW / ±1% of measurement range
10.00 kW to 99.99 kW / 0.01 kW / ±1% of measurement range
100.0 kW to 999.9 kW / 0.1 kW / ±1% of measurement range
1000 kW to 9999 kW / 1 kW / ±1% of measurement range
PCE-830 + PCE-3007
Current AC (50 Hz or 60 Hz, auto range select, TRMS):
0 to 300 A / 0.1 A / ±1.0% of measurement range
300.0 A to 999.9 A / 0.1 A / ±1.0% of measurement range
1000 A to 3000 A / 1 A / ±1.0% of measurement range
Voltage AC (50 Hz or 60 Hz, TRMS): 20.0 V to 500.0 V / 0.1 V / ±0.5% ±5 digits
20.0 V to 600.0 V / 0.1 V / ±0.5% ±5 digits
(measure between phase and neutral)
Peak value measurement of AC voltage and current: 1.00 to 99.99 / 0.01 / ±5% ±30 digits
Frequency range in automatic mode: 45 Hz to 65 Hz / 0.1 Hz / 0.1 Hz
Memory:
512 kB for a maximum 52,420 readings taken by 1 phase / 2 conductors
Port: USB
Software and cable: included, for Windows 2000, XP, ME
Display: backlit LCD with dot matrix
Power: 8 AA batteries (Mignon)
Dimensions: 257 mm x 155 mm x 57 mm (10.1 in x 6.1 in x 2.2 in)
Weight: 1.16 kg / 2.56 lbs
Operating conditions:
max. 85% relative humidity
-10º C to 50º C / +14º F to +122º F
Type of protection / standards: IEC 61010, 600 V/CAT III
Delivery Scope:

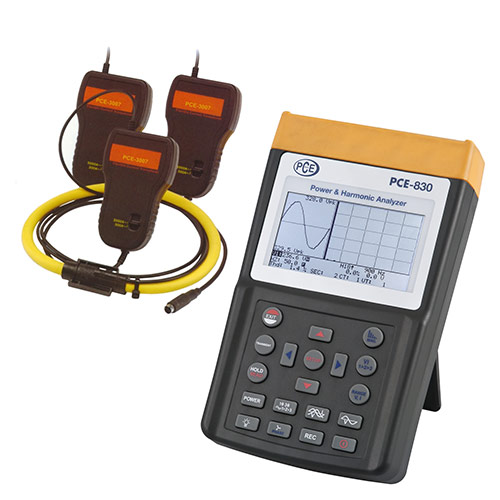

1 x PCE-830-3 Power Analyzer
3 x Amp clamps - PCE-3007
4 x Alligator clips
4 x Safety test lines (3 m / 3.3 ft long),
8 x Batteries
1 x Mains adaptor
1 x Carrying case
1 x USB cable software
1 x User's manual
