PCE 430-EKIT-ICA ຊຸດເຄື່ອງວັດແທກລະດັບສຽງກາງແຈ້ງ (22-136 dBA; ISO Calibration Certificate)
Measuring range: 22 ... 136 dbA
Accuracy: Class 1
Frequency range: 3 Hz ... 20 kHz
Standards: GB/T3785.1-2010; GB/T3785.2-2010; IEC60651:1979; IEC60804:2000; IEC61672-1:2013; ANSI S1.4-1983; ANSI S1.43-1997
Frequency analysis: Octave band filter: 8 Hz ... 16 kHz
1/3 Octave band filter: 6.3 Hz ... 20 kHz
Microphone: 1/2" measurement microphone class 1
Sensitivity: 40 mV/PA
Frequency range: 3 Hz ... 20 kHz
Connection: TNC
Power supply: ICCP Standard
Data-logging interval: 1 s ... 24 h (adjustable)
Display: 160 x 160 pixel LCD with backlight
Memory: 4 GB Micro SD card
Interface: USB (Memory readable via software or directly as mass storage), RS232
Voltage output: AC 5V RMS
DC 10 mV/db
Power supply: 4 x 1.5 V AA batteries
12 V / 1 A power plug
5 V / 1 A USB
Operating time battery mode: min. 10 h
Dimensions: 70 x 300 x 36 mm / 2.76 x 11.81 x 1.42" (W x H x D)
Weight: approx. 620 g / 1.4 lbs incl. batteries
Protection: IP65
Outdoor Noise Level Meter Kit
Connections on the suitcase: Microphone: TNC
12V charging voltage: XLR
110V / 230V charging voltage: PowerCon TRU
Charger: Victron Blue Smart 12 V / 4 A IP65
Internal batteries: 2 x 12 V / 12 Ah lead gel
Battery running time: min. 10 days
Power supply: with charger EU Version: 180 ... 265 V AC
with charger US Version: 100 ... 130 V AC
battery operation: 2 x 12 V / 12 Ah
Cable length: Microphone cable: 2 m / 6 ft 6" with TNC connector
Power supply: 2 m / 6 ft 6" with PowerCon TRU
Dimensions: 56 x 35 x 23 cm / 2.2 x 1.3 x 0.9"
Weight: ca. 14 kg / 30 lb 13 oz with batteries
ca. 8 kg / 17 lb 10 oz without batteries

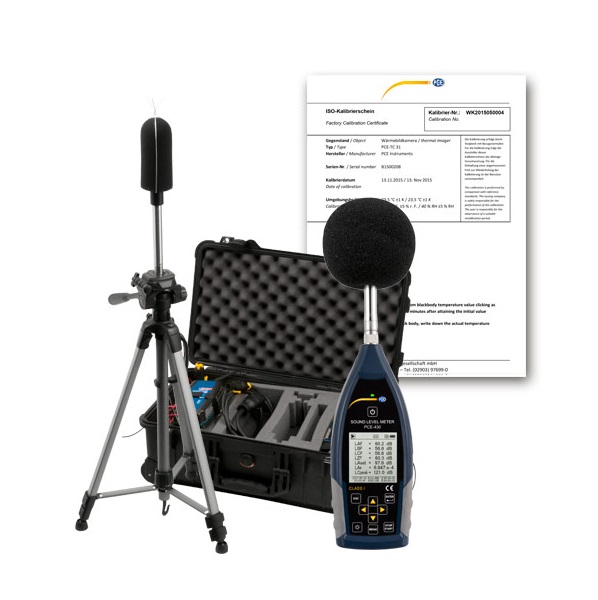

Delivery Scope:
1 x Outdoor Sound Level Meter PCE-430-EKIT incl. Outdoor Noise Level Meter Kit
1 x 1/2" measurement microphone class 1
1 x Wind noise suppression (foam ball)
1 x USB interface cable
1 x Software is a free download
1 x Power adapter
1 x Suitcase
1 x User manual
1 x ISO calibration certificate
1 x Outdoor Noise Level Meter Kit PCE-4xx-EKIT
1 x Waterproof PELI transport case
1 x Wind and rain protection for microphone of the PCE-4xx series
1 x Charger for internal batteries
2 x 12 V lead gel batteries
1 x Tripod
1 x 2 m / 6ft 6" microphone cable
1 x Connection cable for power supply (optional Schuko or US connection)
