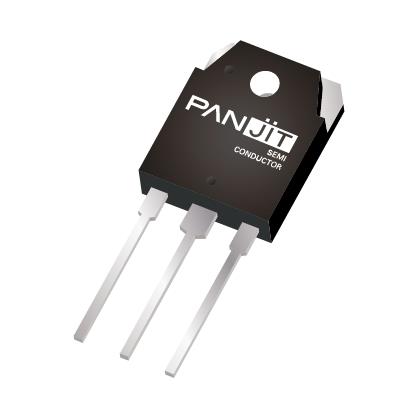

PANJIT PJZ22NA50A_T0_10001 MOSFETs PJ/22NA50A/TP//RoHS/0.03K/TO-3PL/MOS/TO/NFET-500LTMN//PJ/TO3PL-AS10/PJZ22NA50A-ASB0/TO3PL-AS03

Fall Time: 104 ns

Rise Time: 83 ns

Technology: Si

Unit Weight: 5.175 g

Channel Mode: Enhancement

Configuration: Single

Mounting Style: Through Hole

Transistor Type: 1 N-Channel

Qg - Gate Charge: 74 nC

Number of Channels: 1 Channel

Transistor Polarity: N-Channel

Pd - Power Dissipation: 260 W

Vgs - Gate-Source Voltage: - 30 V, + 30 V

Typical Turn-On Delay Time: 46 ns

Typical Turn-Off Delay Time: 248 ns

Id - Continuous Drain Current: 20.5 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C

Rds On - Drain-Source Resistance: 260 mOhms

Vds - Drain-Source Breakdown Voltage: 500 V

Vgs th - Gate-Source Threshold Voltage: 4 V
