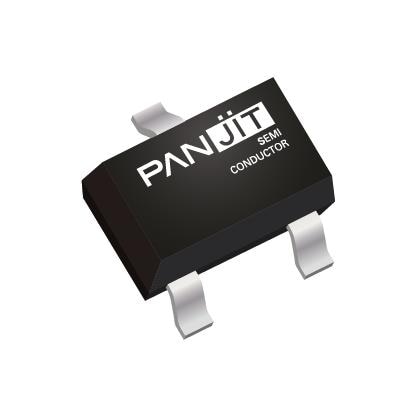

PANJIT PJC7407_R1_00001 MOSFETs 20V P-Channel ໂມດພະລັງງານການປະຕິເສດ MOSFET

Fall Time: 45 ns

Rise Time: 27 ns

Technology: Si

Unit Weight: 6 mg

Channel Mode: Enhancement

Configuration: Single

Mounting Style: SMD/SMT

Transistor Type: 1 P-Channel

Qg - Gate Charge: 5.4 nC

Number of Channels: 1 Channel

Transistor Polarity: P-Channel

Pd - Power Dissipation: 350 mW

Vgs - Gate-Source Voltage: - 12 V, + 12 V

Typical Turn-On Delay Time: 3.9 ns

Typical Turn-Off Delay Time: 78 ns

Id - Continuous Drain Current: 1.3 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C

Rds On - Drain-Source Resistance: 200 mOhms

Vds - Drain-Source Breakdown Voltage: 20 V

Vgs th - Gate-Source Threshold Voltage: 1.2 V
