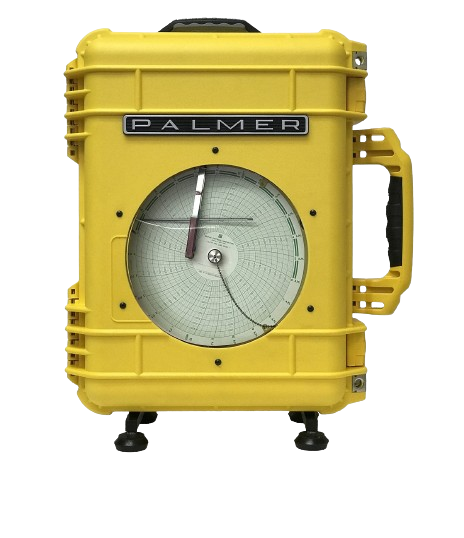

Chart Recorder Type: Pressure & Temperature System
Chart Recorder Size: 8 inch Pelican Case
Chart Recorder Mounting Style: Wall Mount - Pull Latch with Hasp - Standard
Arc Line: 6-3/8 inch
Case: Pelican® brand case
Available Case Colors: Black (Standard), Orange, Yellow
Maximum Number of Total Systems: 3
Pressure Process Connection: Standard: 1/4 inch NPT for pressure ranges at or below 10,000 PSI., Optional: 1/2 inch NPT
Number of Temperature Systems: 1, 2
Mercury Filled °C Temperature Ranges:
0° to 60°C
0° to 100°C
0° to 120°C
0° to 150°C
0° to 200°C
0° to 250°C
0° to 300°C
0° to 350°C
0° to 400° C
Pen Colors: Standard: Red, Blue, Green. Optional: Black
Pressure Accuracy: ± 1/2 chart graduation for pressure measurement
Dimensions: 16.44 in. x 13.00 in. x 6.82 in. (41.8 x 33 x 17.3 cm). Does not include feet or pedestal.
