- Rated Power (VA): 12000
- Output Form: 1Ø/2Ø; 3Ø
- Output Voltage Max (1Ø/2Ø; 3Ø) (l-n/l-l):
Direct: 135/270; 135/234
Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1):
1Ø/2Ø 202/404; 270/540; 338/600
3Ø 202/350; 270/468; 338/585
- Current (1Ø/2Ø; 3Ø) (Arms):
Direct: 96/48; 32/Ø
Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1):
1Ø/2Ø 64/32; 48/24; 38/19
3Ø 21/Ø; 16/Ø; 13/Ø
- Frequency Range:
Direct: 15~1200
Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1): 45~1200; 45~1200; 45~1200
- Input Power: 3Ø 47-63Hz
- Unit Height (In/mm/U): 7

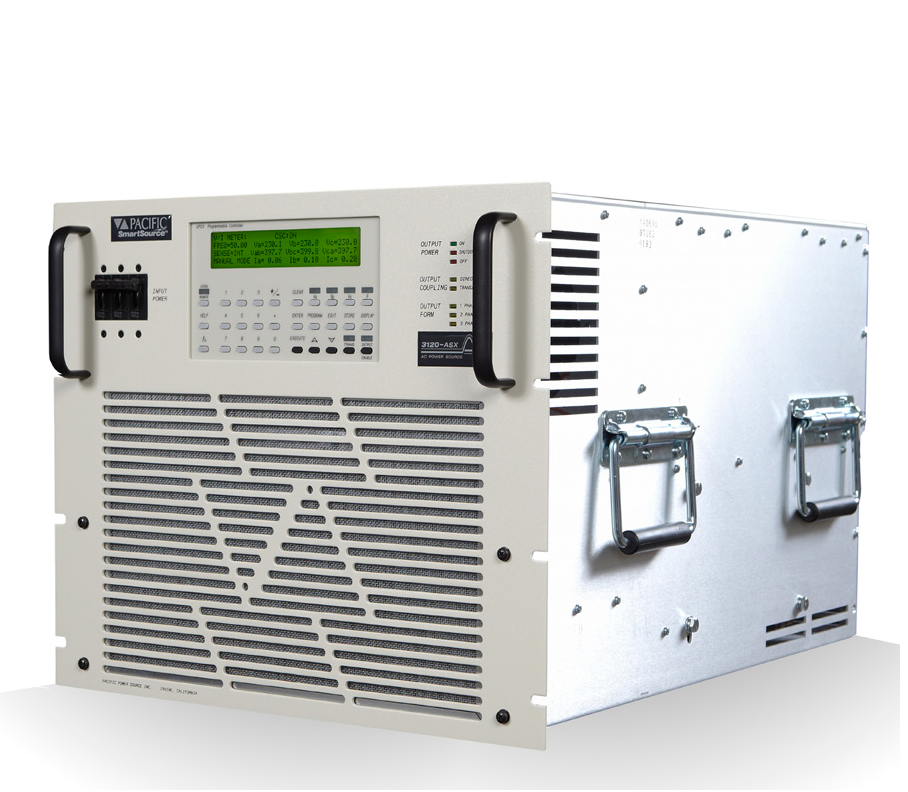

3120ASX: 15.75/400/9U
Transformer Module: 7.0/178/4U
- Unit Weight (Lbs/Kg): 280 /127
- Output Frequency:
15~1200 Hz Direct Coupled
45~1,200 Hz Transformer Coupled
- Line Regulation: 0.1% max for a ±10% line change
- Load Regulation:
+ 3Ø direct coupled:
0.25% 15 to 400 Hz.,
0.50% 400 to 1,200 Hz.
+ 3Ø transformer coupled: 2 to 5% depending on ratio
Improves to less than 0.1% with external sense and CSC enabled
- Output Distortion:
0.25% THDAVG 15~200 Hz
1.25% THDAVG 200~1200 Hz
- Ripple and Noise: -66dB
- Response Time: 60 μsec typical
