Output
- Power: 62.5kVA/50kW
- Voltage: Direct Coupled: 0-120/208 V, 3-phase
- Current RMS:
175 ARMS/Phase continuous
Pf < 0.8=175ARMS/Phase
Pf 1.0=140ARMS/Phase
- Overload (kw): 110% for 1 hour, 125% for 10 minutes, 150% for 10
seconds
- Frequency:
50Hz, 60Hz or 400Hz Fixed settings
47 - 500 Hz Variable
- Voltage THD:
< 1% max. Vthd at 50 or 60Hz
< 2% max. Vthd at 400Hz
- Load regulation: ±1% @ 50/60Hz, ±2% @ 400Hz
- Line regulation: ±1% maximum for ±10% line voltage change
- Load transient response and recovery time:
150 microseconds for 50% load step and 300 microseconds for 100% load step.
- Height: 72" / 1829 mm
- Width: 36" / 914 mm
- Depth: 30" / 762 mm
- Weight: 1,557 lbs. / 715 kg
- Installation clearance: 36" at front of cabinet for service, 12" top, 0" side and rear
- Operating temperature:
Operating: 0º to +40ºC (32º to 104ºF)
Storage: -10º to +70ºC (+14º to +158ºF)
- Relative humidity: 0 to 95% non-condensing
- Noise level: 65 dbA at 3 feet
- Efficiency: 85 % typical
- Cooling/ Ventilation: Self-Contained fans; bottom intake, top exhaust, 1200 CFM.
- Heat dissipation at fullload: 20 kBTU/HR (6 kW/HR)
- Certification: CE, ETL (Optional)
- Altitude: Operating 6000 Ft. Storage 40,000 Ft
- Optional: the external SCU/UPC-32 programmable controller
Standard Delivery:

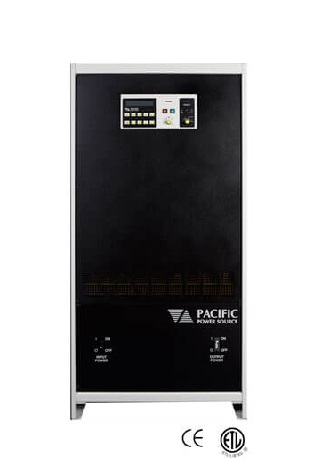

- 3060-MS Solid State Frequency Converter.
- User Manuals.
