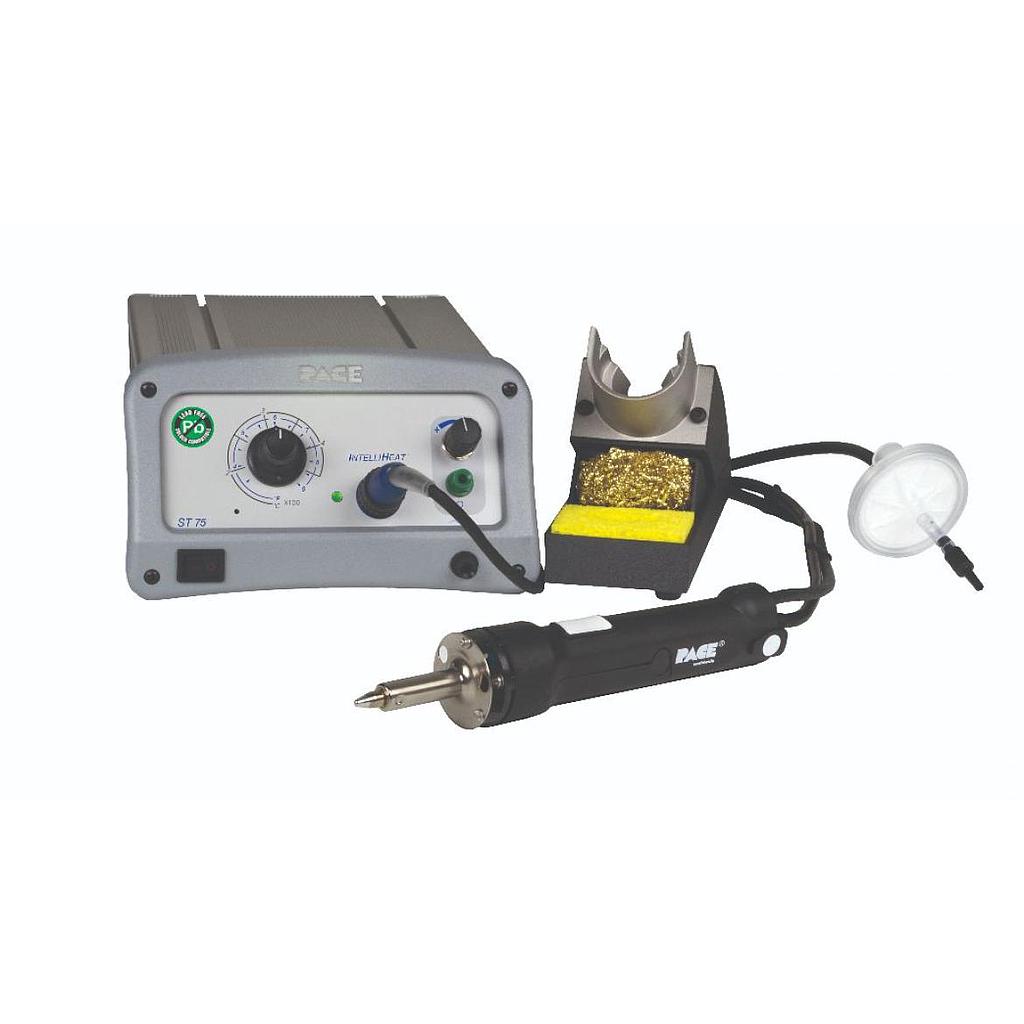

PACEWORLDWIDE ST 75E ລະບົບ Desoldering ກັບ SX-100 Sodr-X-Tractor (Tích hợp bơm hút trong máy)
1.Lựa chọn đầu TIP mua thêm :
2.Lựa chọn tay cầm theo ứng dụng khác mua thêm
PS-90 Universal Soldering Iron (IntelliHeat)
TT-65 ThermoTweez Kit with Tip & Tool Stand (IntelliHeat)
3. Một số thông số tham khảo
Power Requirements: 197-253 VAC, 50/60Hz, 120
Control: Dial
Control Technology: IntelliHeat
Tip to Ground Resistance: 2 ohms or less
Temperature Accuracy: Meets or exceeds ANSI-J-STD
Absolute Temperature Stability: ° 1.1°C (° 2 °F) at idle tip temp.
Temperature Range: Tip Heater Compatible Handpieces = 205° to 454°C (400° to 850°F) Nominal
SensaTemp Compatible Handpieces = 176°(Dial)or 37°C (Digital Display) to 482°C (350°(dial)or 100° (Digital Display) to 900°F) Nominal
System Can be Calibrated: Yes
Vacuum/Pressure Source Type: Self Contained Pump
Vacuum Rise Time: 150 ms Average
Vacuum (Nominal): 20 in Hg Max
Flow Control Valve: High Precision Needle Valve
Pressure (Nominal)18 p.s.i.
Air Flow (Nominal)8 slpm Max
Manuals
ST 30, ST 50, ST 65, ST 75, ST115 Intelliheat Manual English
ST 30, ST 50, ST 65, ST 75, ST115 Intelliheat Manual Hebrew
Brochures
Product Overview, English - NEW 2013
Product Overview, French - NEW 2013
Product Overview, Portuguese - NEW 2013
Product Overview, Spanish - NEW 2013
Solder, Desolder & Rework Catalog - NEW 2013
