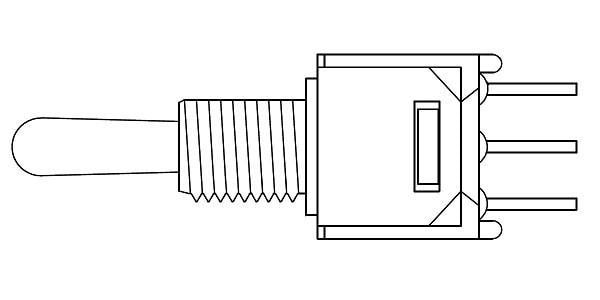

P&B TMS1T3B1M5RE ຊັບມິນິເມຈເຕີ M5 ທອງ SP On-None-On TS

Color: Red

Actuator: Bat

IP Rating: IP67

Illuminated: Non-Illuminated

Unit Weight: 2.830 g

Bushing Size: 10-48

Contact Form: SPDT

Power Rating: 400 mVA

REACH - SVHC: Details

Mounting Type: Bushing

Terminal Seal: Epoxy

Actuator Style: Bat

Current Rating: 400 mA

Mounting Angle: Vertical

Mounting Style: Panel Mount

Contact Plating: Gold

Switch Function: ON - ON

Contact Material: Copper Alloy

Housing Material: Thermoplastic (TP)

Termination Style: Wire Wrap

Voltage Rating AC: 20 VAC

Voltage Rating DC: 20 VDC

Flammability Rating: UL 94 V-0

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C
