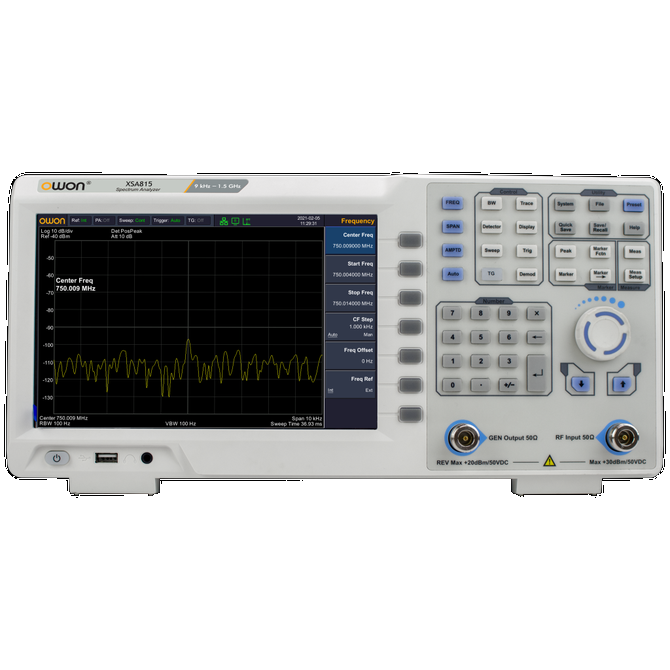

OWON XSA815 ອຸປະກອນວິເຄາະສະພັດເຄັນ (9 kHz – 1.5 GHz)
Frequency Range: 9 kHz – 1.5 GHz
Frequency Resolution: 1 Hz
Frequency Span:
Span Range: 0 Hz, 100 Hz – max frequency of instrument
Span Uncertainty: ± span / (sweep points−1)
SSB Phase Noise (20–30°C, fc=1 GHz): <−80 dBc/Hz @10 kHz • <−100 dBc/Hz @100 kHz • <−115 dBc/Hz @1 MHz
Resolution Bandwidth (−3 dB): 1 Hz – 1 MHz (1-3-5-10 sequence)
RBW Accuracy: <5% (typical)
Resolution Filter Shape Factor (60 dB:3 dB): <5 typical
Video Bandwidth (−3 dB): 10 Hz – 1 MHz (1-3-5-10 sequence)
Amplitude Measurement Range:
DANL to +10 dBm, 100 kHz to 10 MHz, Preamp Off
DANL to +20 dBm, fc ≥ 10 MHz, Preamp Off
Reference Level: −80 dBm to +30 dBm, 0.01 dB step
Preamp: 20 dB nominal (100 kHz – 1.5 GHz)
Input Attenuator: 0 to 40 dB, 1 dB step
Preamp Off
9 kHz–1 MHz: −95 dBm (typical), <−88 dBm
1–500 MHz: −140 dBm (typical), <−130 dBm
500 MHz to 1.5 GHz: -138 dBm (Typical), <-128 dBm
Preamp On
100 kHz–1 MHz: −135 dBm (typical), <−128 dBm
1–500 MHz: −160 dBm (typical), <−150 dBm
500 MHz to 1.5 GHz: -158 dBm (Typical), <-148 dBm
