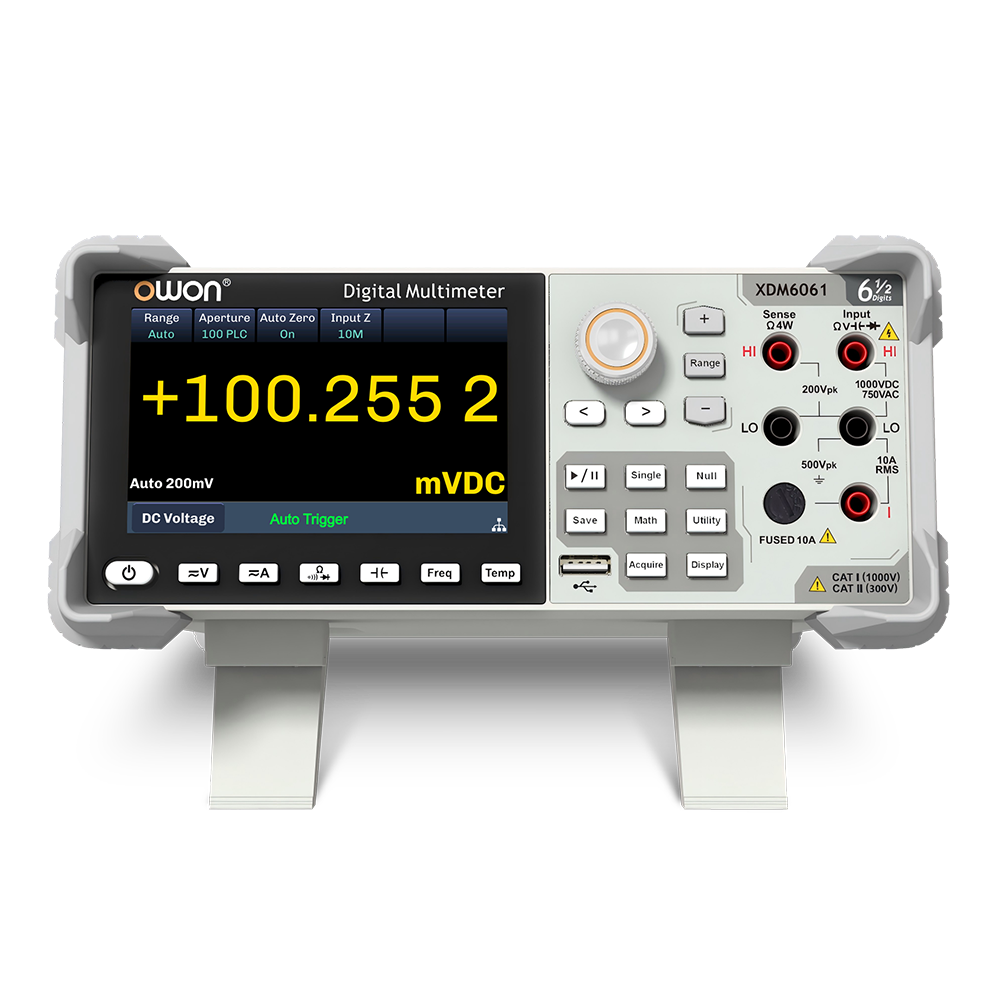

OWON XDM6061-H ເຄື່ອງວັດຄວາມດັນບັນທຶກຂໍ້ມູນ (3000VDC, 750VAC, 200ADC, 10AAC, True RMS)
Function:
DC Voltage:
Range: 200.000mV – 3000.000V (XDM6061-H)
Best Accuracy: 0.0035±0.0006
Temperature Coefficient: 0.0005+0.0001
AC Voltage (True RMS):
Range: 200.0000mV - 750.0000V
Best Accuracy: 0.06+0.04
Temperature Coefficient: 0.005+ 0.004
DC Current:
Range: 200.0000µA - 200.00000A (XDM6061-H)
Best Accuracy: 0.050+0.003
Temperature Coefficient: 0.0020+0.0005
AC Current (True RMS):
Range: 200.0000µA - 10.00000A
Best Accuracy: 0.10+0.04
Temperature Coefficient: 0.015+ 0.006
Resistance:
Range: 200.0000Ω - 100.0000MΩ
Best Accuracy: 0.010+0.001
Temperature Coefficient: 0.0006+0.0001
Diode Test:
Range: 0 - 5V
Best Accuracy: 0.010+0.020
Temperature Coefficient: 0.0010+0.0020
Continuity Test:
Range: 2000.0 Ω
Best Accuracy: 0.010+0.020
Temperature Coefficient: 0.0010+0.0020
Frequency / Period:
Range: 3Hz - 1MHz
Best Accuracy: 0.007
Temperature Coefficient: 0.001
Capacitance:
Range: 2.0000nF - 100.00mF
Best Accuracy: 1 + 0.3
Temperature Coefficient: 0.01 +0.01
Temperature:
Range: thermocouple (ITS-90 conversion between B / E / J / K / N / R / S / T type); thermal resistance (RTD sensor conversion between Pt100 and Pt385 type); 2-wire and 4-wire thermistors (5 kΩ 44007 type)
Best Accuracy: 0.16°C
Temperature Coefficient: 0.01°C
Mathematical Functions: Min, Max, Avg, Std Dev, dBm, dB, Limit, Relative, Histogram, Trend Chart, Bar Chart
Trigger: External Trigger、 VMC out
Data-logger Function:
Logging Duration: 1ms-3600s
Logging Length: 2M points (Internal memory)
General:
Dimension (W x H x D): 346mm x 260 mm x 107 mm
Weight: 3.4kg (without package)
