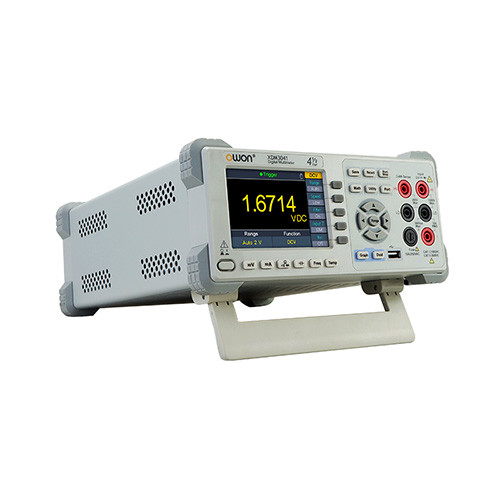

OWON XDM3041 Bench-Type Digital Multimeter (4 1/2 digital)
DC Voltage
600mV, 6V, 60V, 600V, 1000V; 0.02±0.01
True RMS AC Voltage
600mV, 6V, 60V, 600V, 750V; 20 Hz - 50 Hz,±2% + 0.10%; 50 Hz - 20 kHz,±0.2% + 0.06%; 20 kHz - 50 kHz,±1.0% + 0.05%; 50 kHz - 100 kHz,±3.0% + 0.08%
DC Current
600.00 μA;±0.06% + 0.02%
6.0000 mA;±0.06% + 0.02%
60.000 mA;±0.1% + 0.05%
600.00 mA;±0.2% + 0.02 %
6.000 A;±0.2% + 0.05%
10.0000 A;±0.250% + 0.05%
True RMS AC Current
60.000 mA, 600.00 mA, 6.0000 A, 10.000 A;20 Hz - 45 Hz±2% + 0.10%; 45 Hz - 2 kHz±0.50% + 0.10%; 2 kHz - 10 kHz±2.50% + 0.20%
Resistance
600.00 Ω;±0.040 %+ 0.01%
6.0000 kΩ;±0.030% + 0.01%
60.000 kΩ;±0.030% + 0.015%
600.00 kΩ;±0.040% + 0.01%
6.0000 MΩ;±0.120% + 0.03 %
60.000 MΩ;±0.90% + 0.03%
100.00 MΩ;±1.75 % + 0.03%
Diode Test:3.0000 V;0.5 + 0.01
Continuity:1000 Ω;0.5 + 0.01
Frequency Period:
600 mV - 750 V;20 Hz - 2 kHz±0.01% + 0.003%; 2 kHz - 20 kHz±0.01% + 0.003%; 20 kHz - 200 kHz±0.01% + 0.003%; 200 kHz - 1 MHz±0.01% + 0.006%
60 mA - 10 A;20 Hz - 2 kHz±0.01% + 0.003%; 2 kHz - 10 kHz±0.01% + 0.003%
Capacitance:
2.000 nF;200 nA;±3% + 1.0%
20.00 nF;200 nA;±1% + 0.5%
200.0 nF;2 μA;±1 %+ 0.5%
2.000 μF;10 μA;±1% + 0.5%
200 μF;100 μA;±1% + 0.5%
10000 μF;1 mA;±2% + 0.5%
Temperature:temperature sensors under 2 categories supported
thermocouple (ITS-90 conversion between B / E / J / K / N / R / S / T type), and thermal resistance (RTD sensor conversion between Pt100 and Pt385 type)
Logging Duration:5ms
Logging Length:1M points
Accessories: Power Cord, Manual, USB, Fuse, Multimeter Lead, Alligator Clip
