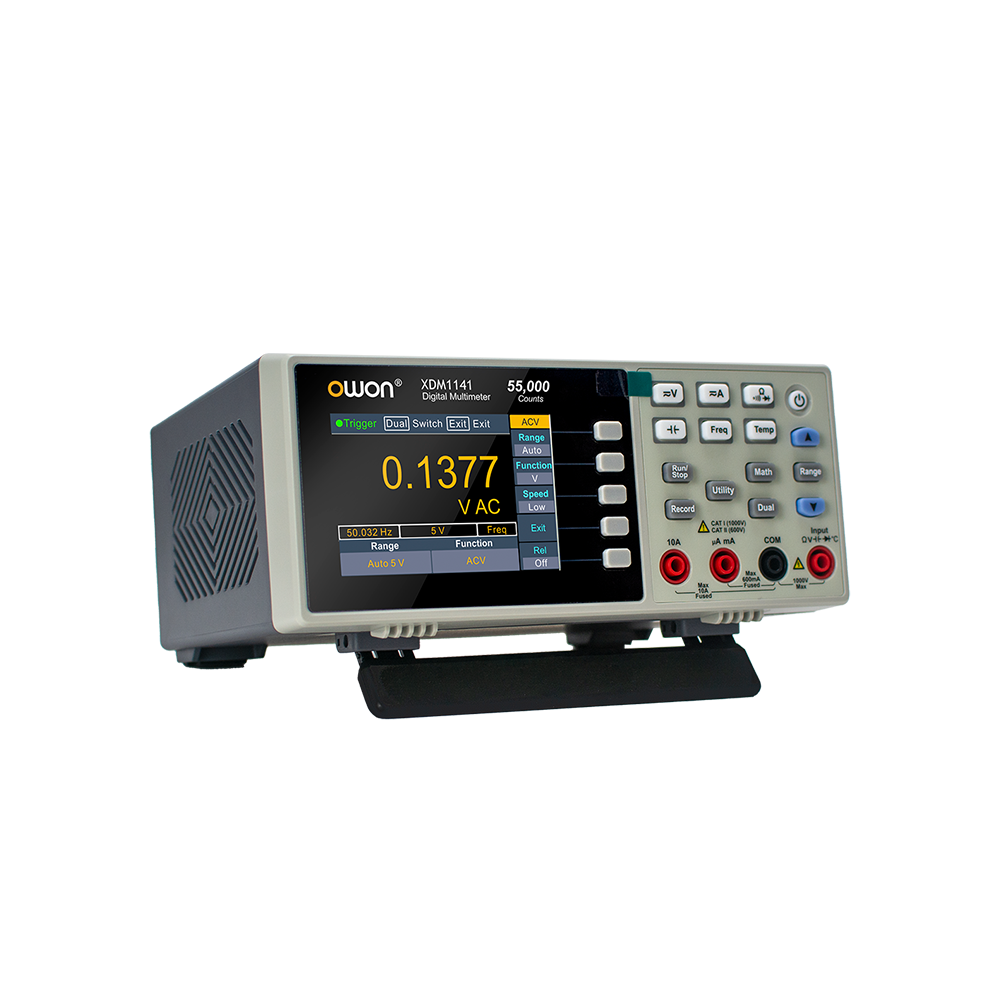

OWON XDM1141 ເຄື່ອງມວນດິຈິຕອນປະເພດໂຕະ (1000VDC, 750VAC, 10AAC/DC)

 Measurement Range/ Resolution / Accuracy ±(% of reading +LBS )

DC Voltage

50.000m / 0.001mV / 0.1%+10

500.00m / 0.01mV / 0.05%+5

5.0000V / 0.0001V / 0.05%+5

50.000V / 0.001V / 0.05%+5

500.00V / 0.01V / 0.1%+5

1000.0V / 0.1V / 0.1%+10

AC Voltage

 500mv-750v / 20Hz～45Hz / 1% + 30

45Hz～65Hz / 0.5% + 30

65Hz～1KHz / 0.7% + 30

DC Current

500uA / 0.01uA / 0.15%+20

5000uA / 0.1uA / 0.15%+10

50mA / 0.001mA / 0.15%+20

500mA / 0.01mA / 0.15%+10

5A  / 0.0001A / 0.5%+10

10A / 0.001A / 0.5%+10

AC Current

500uA-500mA / 20Hz-1KHz / 0.5%+20

 5A-10A / 20Hz-1KHz / 1.5%+20

Resistance

500Ω / 0.01Ω / 0.15%+10

5KΩ / 0.0001KΩ / 0.15%+5

50KΩ / 0.001KΩ / 0.15%+5

500KΩ / 0.01KΩ / 0.15%+5

5MΩ / 0.0001MΩ / 0.3%+5

50MΩ / 0.001MΩ / 1%+10

Frequency

10.000Hz–60MHz / - /  ±(0.2%+10)

Capacitance

50nF-500uF / - / 2.5%+10

5mF-50mF / - / 5%+10

Diode

3.0000 V/ 0.0001V / -

Continuity

1000 Ω / 0.1Ω / Adjustable threshold

Temperature: K type，PT100

Max Display: 55,000 counts

Data-logging Function

Logging Duration: 15ms-9999.999s

Logging Length: 1,000 points

General

Display Screen: 3.5- inch TFT LCD with resolution 480*320

Dimensions (W×H×D):  200 x 88x 150 (mm)

Device Weight:  Approximately 0.5kg
