Max 80MHz frequency output
Arbitrary Waveform: 1μHz ~15MHz
Harmonic: 1μHz ~40MHz
Accuracy: ±2ppm, 25°C±5°C
Waveform Length: 2 points - 10M points
Amplitude into 50Ω load: 1mVpp ~ 10Vpp (≤ 25MHz); 1mVpp ~ 5Vpp (≤60MHz); 1mVpp ~ 2.5Vpp (≤100MHz);
Modulation Type: AM, DSB-AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM, SUM
Frequency Counter:
- Function: Frequency, period, +width, -width, +duty, and -duty
- Frequency Range: 100mHz ~ 200MHz
- Frequency Resolution: 7 digits
Input / Output:
- Input mode: frequency counter, external modulation input, external trigger input, Internal clock output, external reference clock input / output
- Communication Interface: USB Host, USB Device, LAN, RS232(optional)
Mechanical specifications:
- Size: 340mm x 177mm x 90mm
- Weight: 2.3kg
Accessories Included:

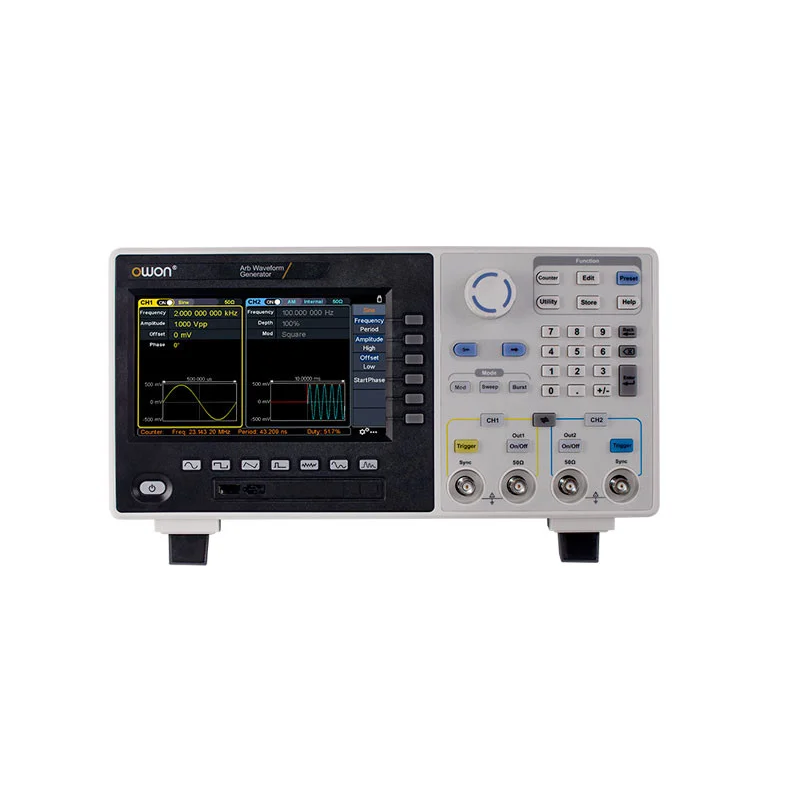

1 x XDG2100
1 x Power Cord
1 x CD Rom
1 x Quick start guide
1 x USB Cable
1 x BNC -BNC Cable
