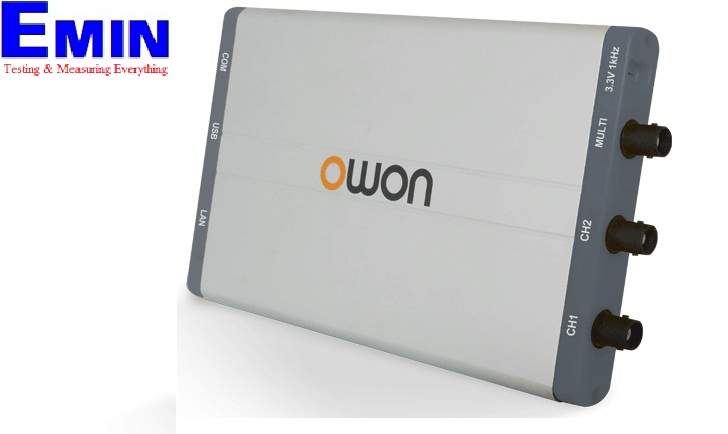

Manufacturer: Owon
Model: VDS6102A
Warranty: 12 months
Bandwidth
VDS6102A
8-bit mode 100 MHz
12-bit mode 100 MHz
14-bit mode 20 MHz
Vertical Resolution (A/D): 8 bits/12 bits/14 bits
Sampling Rate
2-CH working
8-bit mode 500 MS/s
12-bit mode 250 MS/s
14-bit mode 100 MS/s
1-CH working
8-bit mode 1 GS/s
12-bit mode 500 MS/s
14-bit mode 100 MS/s
Rise Time: ≤ 2.3 ns
Horizontal Scale: (s/div) 5ns/div - 100s/div, step by 1 - 2 - 5
Sampling Mode: sample, peak detect, average
Channel Q'nty 3 (2 main one + 1 auxilary)
Record Length: max 10M
Input Coupling: DC, AC, ground
Input Impedance: 1 MΩ ± 2%, in parallel with 15 pF ± 5 pF
Max Input Voltage : 40 V (DC + AC Peak)
DC Gain Accuracy: 2% when ≥ 2 mV
Vertical Sensitivity: 2 mV/div - 5 V/div
Trigger Type: edge, video, slope, pulse2
Trigger Mode: auto, normal, single
Line/Field Frequency (video): supported standards: NTSC, PAL and SECAM broadcast systems
Automatic Measurement: Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A→B , Delay A→B , +Width, -Width, +Duty, -Duty
Function Generator Part
Standard Waveforms: sine, square, ramp, and pulse
Frequency Output: 5 MHz
Sampling Rate: 25 MSa/s
Channel Q'nty: 1
Vertical Resolution: 10 bits
Amplitude Range: 10 mVpp – 5 Vpp
DC Offset Range (AC+DC): ± 2.5V
Output Impedance: 50 Ω (typical)
General Part
Communication Interface: USB device (type-C), USB host (Wi-Fi extension supported), LAN
Wi-Fi Module: available in option
Power Source: 5 - 15 VDC / 1.2A
Power Consumption: ≤ 8 W
Device Dimension: w/h/d 190 x 120 x 18 mm
Weight: 0.38 kg
