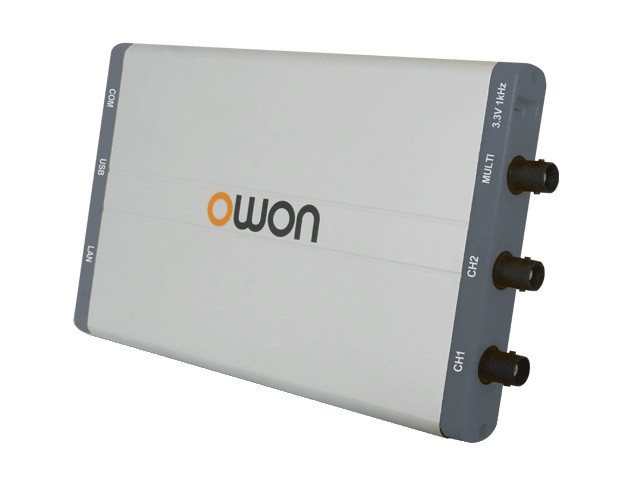

Owon VDS3102 USB Oscilloscope (2Ch, 100 MHz, 1GS/s, USB Isolation)

ຜູ້ຜະລິດOWON

ModelVDS3102

ຕົ້ນກຳເນີດChina

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Model		VDS1022	VDS1022	VDS2062	VDS3102	VDS3104
Bandwidth		25MHz		60MHZ	100MHZ
Channel		2+1 (multi )				4+1 (multi)
Sample Rate		100MS/s		500MSa/s	1GSa/s
Horizontal Scale (s/div)		5ns/div～100s/div, step by 1～2～5			2ns/div~100s/div, step by 1～2～5
Rise Time		≤14ns		≤5.8 ns	≤3.5 ns
Record Length		5K		10M
Input Coupling		DC AC GND
Input Impedance		1MΩ±2%，in parallel with10pF±5pF
Channels Isolation		50Hz : 100 : 1, 10MHz : 40 : 1
Max Input Voltage		400V (PK - PK) (DC+AC, PK - PK)	40V (PK - PK) (DC+AC, PK - PK)
DC Gain Accuracy		±3%
DC Accuracy		Average≥16: ±(3% reading + 0.05div) for △T
Probe Attenuation Factor		1X, 10X, 100X, 1000X
LF Respond (AC, -3dB)		≥5Hz (at input, AC coupling, -3dB)
Sampling Rate / Relay Time Accuracy		150ps
Interpolation		sin(x) / x
Interval (△T) Accuracy (full bandwidth)		Single: ± (1 interval time + 100ppm × reading + 0.6ns), Average >16: ±(1 interval time + 100ppm × reading + 0.4ns)
Vertical Resolution (A/D)		8 bits resolution (2 channels simultaneously)
Vertical Sensitivity		5mV/div～5V/div
Trigger Type		Edge, Pulse, Video, Slope, Alternate
Trigger Mode		Auto, Normal, Single
Trigger Level		±5 divisions from screen center
Acquisition Mode		Sample, Peak Detect, and Average
Line / Field Frequency (video)		NTSC, PAL, and SECAM standard
Cursor Measurement		△V, and △T between cursors
Automatic Measurement		Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -Duty
Waveform Math		＋, －, ×, ÷, FFT
Lissajou’s Figure	Bandwidth	full bandwidth
	Phase Difference	±3 degrees
Communication Interface		USB 1.1		USB 2.0, LAN (optional)
Multi-function Interface	Signal Type	synchronized input / output, Pass / Fail , external trigger input
	Level Standard	TTL
Power Supply		5.0V/1A
Power Consumption		≤1.5W		≤5W
Dimensions (W × H × D)		170 × 120 × 18 (mm)		190 × 120 × 18 (mm)
Weight (without package)		About 0.26 kg				About 0.30 kg

Model		VDS1022	VDS1022	VDS2062	VDS3102	VDS3104
Bandwidth		25MHz		60MHZ	100MHZ
Channel		2+1 (multi )				4+1 (multi)
Sample Rate		100MS/s		500MSa/s	1GSa/s
Horizontal Scale (s/div)		5ns/div～100s/div, step by 1～2～5			2ns/div~100s/div, step by 1～2～5
Rise Time		≤14ns		≤5.8 ns	≤3.5 ns
Record Length		5K		10M
Input Coupling		DC AC GND
Input Impedance		1MΩ±2%，in parallel with10pF±5pF
Channels Isolation		50Hz : 100 : 1, 10MHz : 40 : 1
Max Input Voltage		400V (PK - PK) (DC+AC, PK - PK)	40V (PK - PK) (DC+AC, PK - PK)
DC Gain Accuracy		±3%
DC Accuracy		Average≥16: ±(3% reading + 0.05div) for △T
Probe Attenuation Factor		1X, 10X, 100X, 1000X
LF Respond (AC, -3dB)		≥5Hz (at input, AC coupling, -3dB)
Sampling Rate / Relay Time Accuracy		150ps
Interpolation		sin(x) / x
Interval (△T) Accuracy (full bandwidth)		Single: ± (1 interval time + 100ppm × reading + 0.6ns), Average >16: ±(1 interval time + 100ppm × reading + 0.4ns)
Vertical Resolution (A/D)		8 bits resolution (2 channels simultaneously)
Vertical Sensitivity		5mV/div～5V/div
Trigger Type		Edge, Pulse, Video, Slope, Alternate
Trigger Mode		Auto, Normal, Single
Trigger Level		±5 divisions from screen center
Acquisition Mode		Sample, Peak Detect, and Average
Line / Field Frequency (video)		NTSC, PAL, and SECAM standard
Cursor Measurement		△V, and △T between cursors
Automatic Measurement		Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -Duty
Waveform Math		＋, －, ×, ÷, FFT
Lissajou’s Figure	Bandwidth	full bandwidth
	Phase Difference	±3 degrees
Communication Interface		USB 1.1		USB 2.0, LAN (optional)
Multi-function Interface	Signal Type	synchronized input / output, Pass / Fail , external trigger input
	Level Standard	TTL
Power Supply		5.0V/1A
Power Consumption		≤1.5W		≤5W
Dimensions (W × H × D)		170 × 120 × 18 (mm)		190 × 120 × 18 (mm)
Weight (without package)		About 0.26 kg				About 0.30 kg
