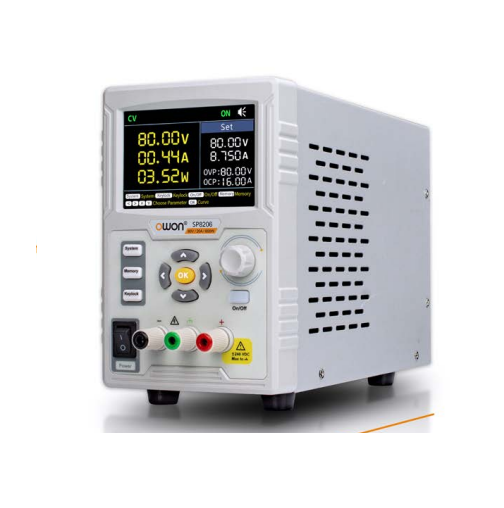

OWON SP8206 ການສະໜອງໄຟຟ້າແຮງດັນສູງກະແສໄຟຟ້າສູງຜົນຜະລິດດ່ຽວ (80V; 20A; 600W)
Rated Output (0°C-40°C):
Voltage: 0-80V
Current: 0-20A
Power: 600W
Input Characteristics:
Supply Voltage: 100-240Vac
Input Frequency: 50 - 60Hz
Full-Load Input Current: ≤6.6A (110Vac); ≤3.2A (220Vac)
No-Load Input Current: ≤200mA (110Vac); ≤100mA (220Vac)
Load Regulation:
Voltage : ≤30mV
Current : ≤30mA
Line Regulation:
Voltage : ≤20mV
Current : ≤20mA
Setting Resolution:
Voltage : 10mV
Current: 1mA
Readback Resolution:
Voltage : 10mV
Current: 1mA
Setting Accuracy (25°C±5°C):
Voltage : ≤0.1% ± 20mV
Current : ≤0.1% ± 20mA
Readback Accuracy (25°C±5°C):
Voltage : ≤0.1% ± 20mV
Current : ≤0.1% ± 20mA
Ripple & Noise (20Hz-20MHz) :
Voltage (Vp-p) : ≤50mVp-р
Voltage (rms) : ≤20mVrms
Current (Ap-p) : ≤20mA
Temperature coefficient of output:
Voltage : 100ppm/°C
Current : 200ppm/°С
Temperature coefficient of readback value:
Voltage : 100ppm/°C
Current : 200ppm/°С
Transient recovery time (10%-100% rated load) : ≤5.0ms
Storage Temperature: -20°C - 60°C
Working Temperature: 0°C- 40°C
Fuse: 250 V, F10A
Display: 3.7-inch Color LCD Display
Dimension (W/ H/D): 117 x 194 x 290 mm
Weight: Approx. 2.0kg
