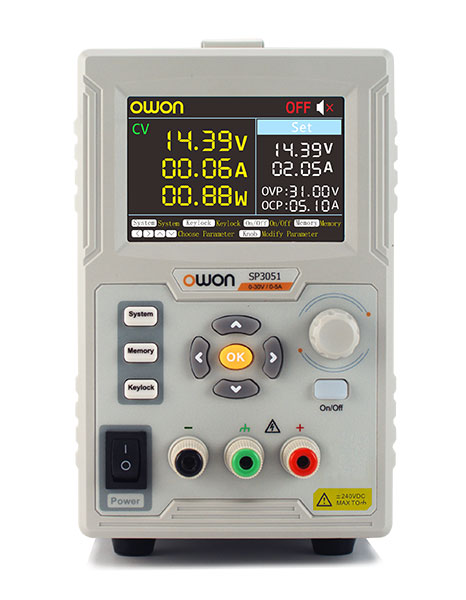

Manufacturer: OWON
Model: SP3051
Origin: China
Warranty: 12 months
Channel: Single Channel Output
Total Output Power: 150W
Channel Output: 0 - 30V / 0 - 5A × 1-CH
Display :3.7 inch color LCD display
Dimension: 117mm(L) × 194mm（H）× 295mm（D）
Weight: Approx. 2.30 kg
Interface: RS232
MEASUREMENT
Rated Output （0℃-40℃）: Voltage 0 - 30V/ Current 5A
Load Regulation: Voltage ≤30mV/ Current ≤50mA
Line Resolution: Voltage ≤10mA/ Current ≤20mA
Setting Resolution: Voltage 10mV/ Current 10mA
Readback Resolution: Voltage 10mV/ Current 10mA
Settings Accuracy (within 12 months) (25℃±5℃): Voltage ≤0.3% + 10mV/ Current ≤0.3% + 20mA
Readback Accuracy （25℃±5℃): Voltage ≤0.3% + 10mV/ Current ≤0.3% + 20mA
Ripple/Noise （20Hz-20MHz）
Voltage （Vp-p） ≤30mVp-p
Voltage （rms） ≤3mVrms
Current （rms） ≤30mArms
Output Temperature （0℃-40℃）
Voltage ≤0.3% + 10mV
Current ≤0.3% + 20mA
Readback Temperature Coefficient
Voltage ≤0.3% + 10mV
Current ≤0.3% + 20mA
Response Time: ≤1.0ms
Storage: 5 groups of data
Working Temperature: 0-40℃
Accessories
Power Cord
Manual
Fuse
RS232 to USB Module( optional )
Test Leads(optional)
