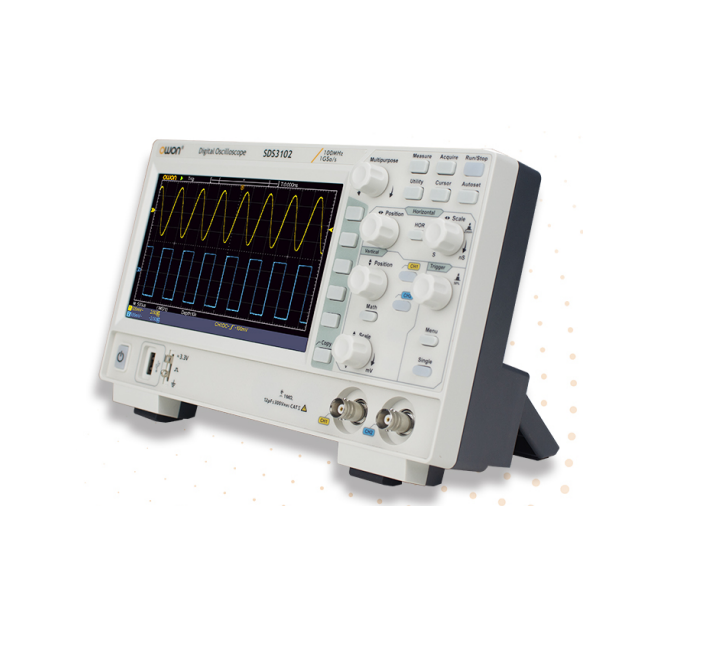

OWON SDS3152 ອອດຊິວສະໂຄບດິຈິຕອນ (150Mhz; 2CH)
Bandwidth : 150MHz
Channel: 2
Sample rate: 1GSa/s
Acquire mode : Sample, Peak, Average
Input coupling: DC, AC, Ground
Input impedance: 1 ΜΩ±2%, in parallel with 12 pF±5 pF
Input coupling: 1X, 10X, 100X, 1000X
Max Record length: 20M
Scanning speed (S/div): 2 ns/div - 1000 s/div,step by 1 -2-5
Sensitivity: 2mV/div~10 V/div
Max. input voltage: 400V (DC+AС, PK - PK)
Bandwidth limit : 20 MHz, full bandwidth
Sampling rate/ relay time accuracy : ±100 ppm
Displacement: ±2 V (2 mV/div - 200 mV/div); ±100 V (500 mV/div - 10 V/div)
Waveform inverted: support
Automatic: Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot,Preshoot, Rise Time, Fall Time, +PulseWidth, -PulseWidth, +Duty Cycle, -Duty Cycle,Delay A→Bf, Delay A-B, Cycle RMS, Cursor RMS, Screen Duty, Phase, +PulseCount, -PulseCount, RiseEdgeCnt, FallEdgeCnt, Area, and Cycle Area
Waveform Math: +, -, x, +, FFT
Waveform storage: 16 waveforms
Trigger Typе: edge, video, pulse, slopе
Communication port: USB 2.0
Counter : Support
Cursor : ΔV,ΔT, ΔT&ΔV between cursors, auto cursor
Lissajous figure: Bandwidth: Full bandwidth; Phase difference: ±3 degrees
Display: 7" (800 x 480) LCD
Mains Voltage : Type-C power supply, DC: 5V 3A
Dimension : 260 mmx 160 mmx78 mm (W*D*H)
Weight : Approx. 1.1 kg
