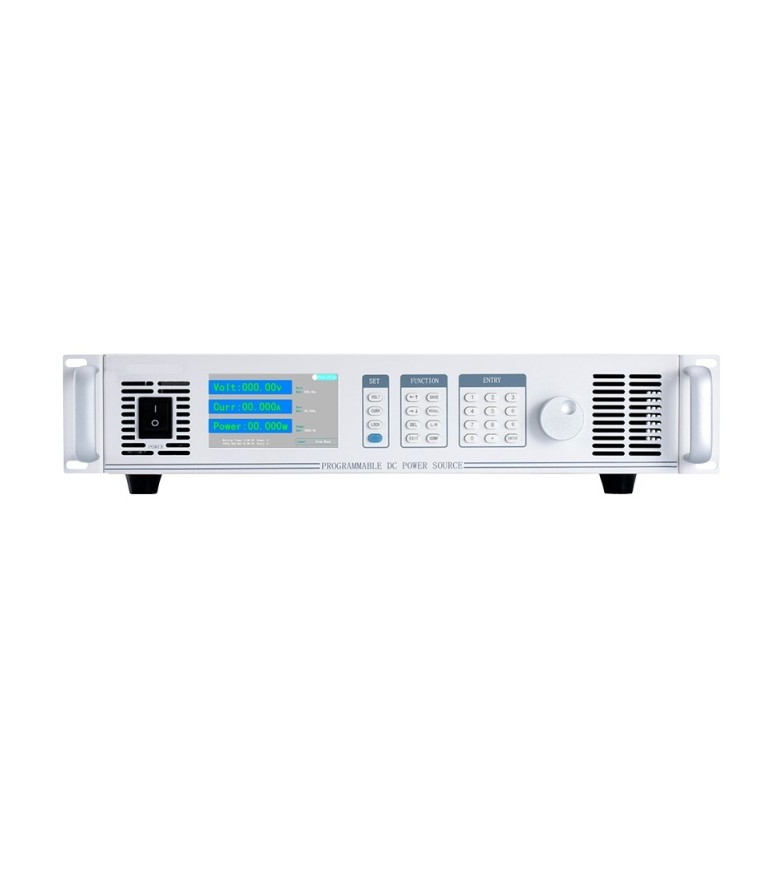

OWON OWP3008H ແຫຼ່ງຈ່າຍໄຟ DC ພະລັງງານສູງ (80V, 60A, 3000W)
Voltage: 80V
Current: 60A
Power: 3000W
Interface: CAN, RS485, Dry Node/Analog(optional)
Power Supply: 1Φ220VAC±10%;50-60HZ
DC Voltage
Output voltage accuracy: <0.1% of rated value
Load Regulation: <0.05% of rated value
linear Regulation ±10% ΔUAC: <0.05% of rated value
Adjustment time with 10-100% load: <5ms
Slew rate10-90%: <20ms-60s
Voltage Compensation: <5% rated voltage
Ripple: <0.1% of rated value
DC Current
Output current accuracy: <0.15% of rated value+20mA
Load Regulation 1-100%: <0.1% of rated value
linear Regulation ±10% ΔUAC: <0.05% of rated value
Power accuracy: <0.3% of rated value
Insulation
AC Input to enclosure: 1500VDC
AC input to DC output: 1500VDC
DC output to enclosure (PE): 500VDC
Other
Protection: OVP, OCP, OLP, OTP
Dry contact input/out put
Dry contact input
Dry contact out put
Cooling methods: Air cooling
Operating Temperature: -5℃-45℃
Storage Temperature: -20℃-60℃
Relative humidity: <80%,NO condensation
Dimension(W*H*D): 425*88*450mm
Weight: 14KG
