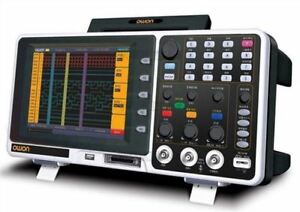

OWON MSO7102T Mixed Logic Analyzer Benchtop Oscilloscope (100M, 1GS/s, 2CH, 2M)
Bandwidth:100MHz
Sample Rate:1GS/s
Vertical Resolution (A/D)):14 bits
Record length:2M record length
Waveform Refresh Rate:70,000 wfms/s
Horizontal Scale (s/div)):2ns/div - 1000s/div, step by 1 - 2 - 5
Channel:2
Display:8" color LCD, 8.0'' color LCD ,640 × 480 pixels
Vertical Sensitivity:2mV/div - 10V/div
Trigger Mode: Edge, Video, Alternate, Pulse, and Slope
Acquisition ModeNormal,Peak Detect,and Average
Record Length2M points
Waveform Storage:4 waveforms
Waveform Math:＋, －, ×, ÷, FFT
Battery: 7.4V 8000mAh (optional)
Dimensions (W × H × D): 370 × 180 × 120 (mm)
Weight (without package): 2.20 kg
Accessories: Power Cord, CD Rom, Quick Guide, USB Cable, Probe Adjust, Probe, Soft Bag (optional), Battery (optional); Logic analyser Module
