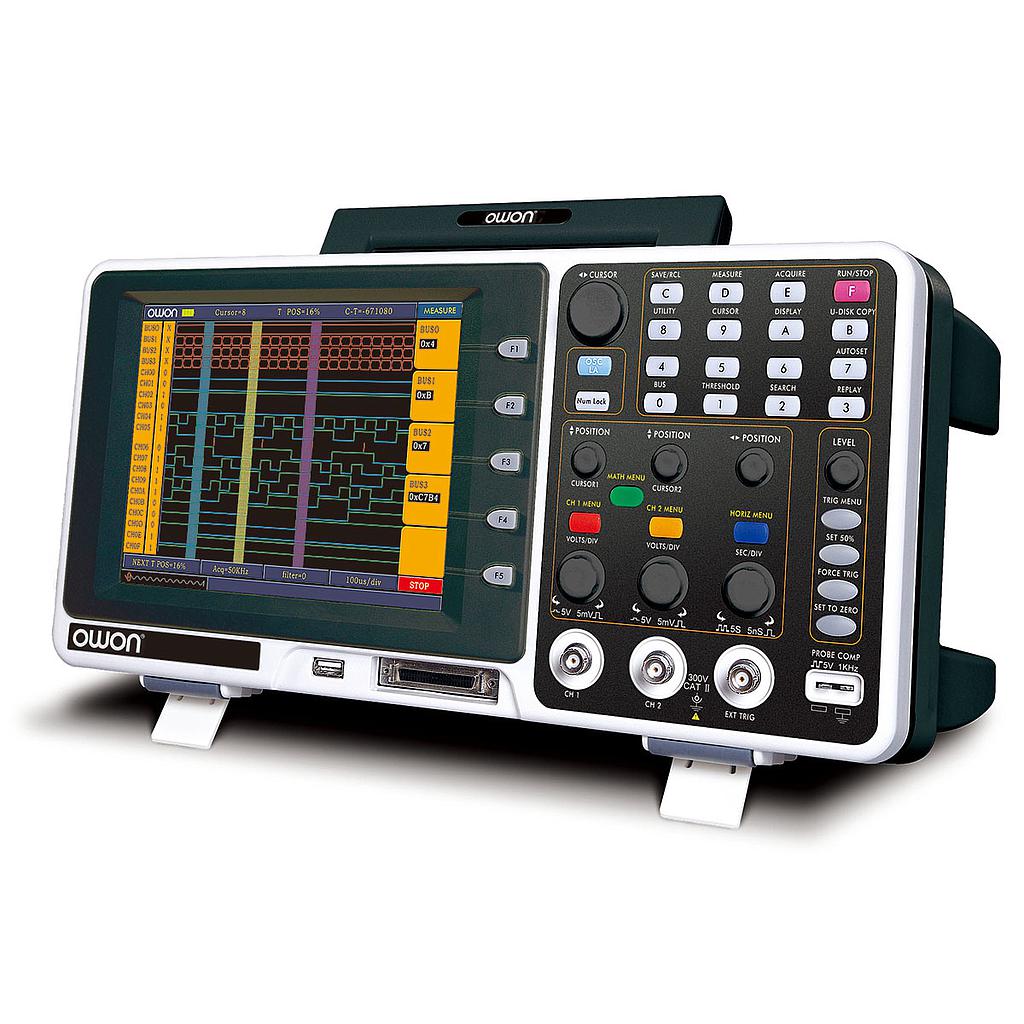

Bandwidth: 70MHz
Sample Rate: 1GS/s
Vertical Resolution (A/D)): 14 bits
Record length: 2M record length
Waveform Refresh Rate: 70,000 wfms/s
Horizontal Scale (s/div)): 2ns/div - 1000s/div, step by 1 - 2 - 5
Channel: 2
Display: 8" color LCD, 8.0'' color LCD ,640 × 480 pixels
Vertical Sensitivity: 2mV/div - 10V/div
Trigger Mode: Edge, Video, Alternate, Pulse, and Slope
Acquisition Mode Normal,Peak Detect,and Average
Record Length 2M points
Waveform Storage: 4 waveforms
Waveform Math: ＋, －, ×, ÷, FFT
Battery: 7.4V 8000mAh (optional)
Dimensions (W × H × D): 370 × 180 × 120 (mm)
Weight (without package): 2.20 kg
Accessories: Power Cord, CD Rom, Quick Guide, USB Cable, Probe Adjust, Probe, Soft Bag (optional), Battery (optional); Logic analyser Module
