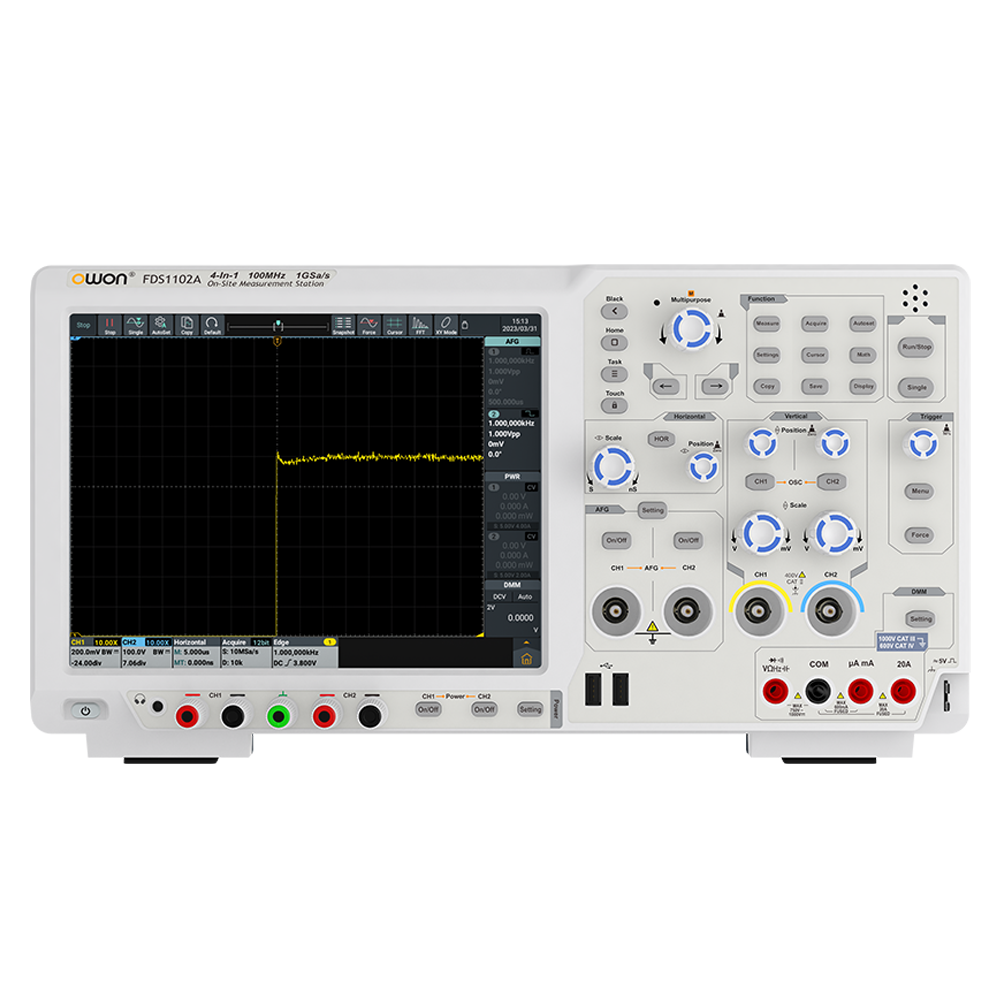

OWON FDS1102A Multifunction DSO (100MHz; 1GS/s; 14 bits)
Oscilloscope Specifications:
Bandwidth: 100MHz
Sample Rate: 1GS/s
Vertical Resolution (A/D): 14bits
Channel: 2
Input impedance: 1MΩ ± 2%, in parallel with 15pF ± 5pF
Input coupling: DC, AC, and GND
Record length: 10M
Horizontal Scale (s/div): 2ns/div - 1000s/div, step by1 - 2 - 5
Max Input Voltage: 1MΩ ≤ 300Vrms;
Vertical Sensitivity: 1mV/div - 10V/div (at input)
Cursor Measurement: △V, and △T between cursors, △V and △T between cursors, and auto- cursors
Automatic Measurement: Period, Frequency, +Pulse Width, -Pulse Width, Rise Time, Fall Time, Screen Duty, +Duty Cycle, -Duty Cycle, PK-PK, RMS, Overshoot, Max, Min, Top, Cycle RMS, Base, Amplitude, Preshoot, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count, Area、Cycle Area, Delay A→B, Delay A→B, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF
Waveform Math: ＋, －, ×, ÷, FFT, User Defined Function, digital filter
Waveform Storage: 128MB,100 waveforms
Lissajou's Figure:
Bandwidth: full bandwidth
Phase Difference: ±3 degrees
Trigger Type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, LIN and CAN
Line / Field Frequency (video): NTSC, PAL and SECAM standard
Trigger Mode: Auto, Normal, and Single
Interface: HDMI；USB device *1, USB Host *4 ；Trig Out(P/F)；LAN；earphone
Frequency Counter: available
WIFI （Optional）: available
Display: 10.4 inch（1024×768）touch LCD
Power Specifications:
Channel: CH1/CH2
Rated Output（0℃-40℃）:
Max Voltage: 0.1-15V
Max Current: 0.1-3A
Max Power: 15W
Setting Resolution:
Voltage: 10mV
Current: 10mA
Multimeter Specification:
Full Scale Reading: 4½ digits
Frequency Response: (40 - 1000) Hz
Auto Range: √
Ture rms: √
Measure: oltage, Current, Capacitance, Resistance, Frequency, Duty cycle, Continue，Diode test
Waveform Generator Specification:
Max Frequency Output: 50MHz
Sample Rate: 300MS/s
Channel: 2
Amplitude (HR): 2mVpp - 10Vpp
Waveform Length: 8K\
