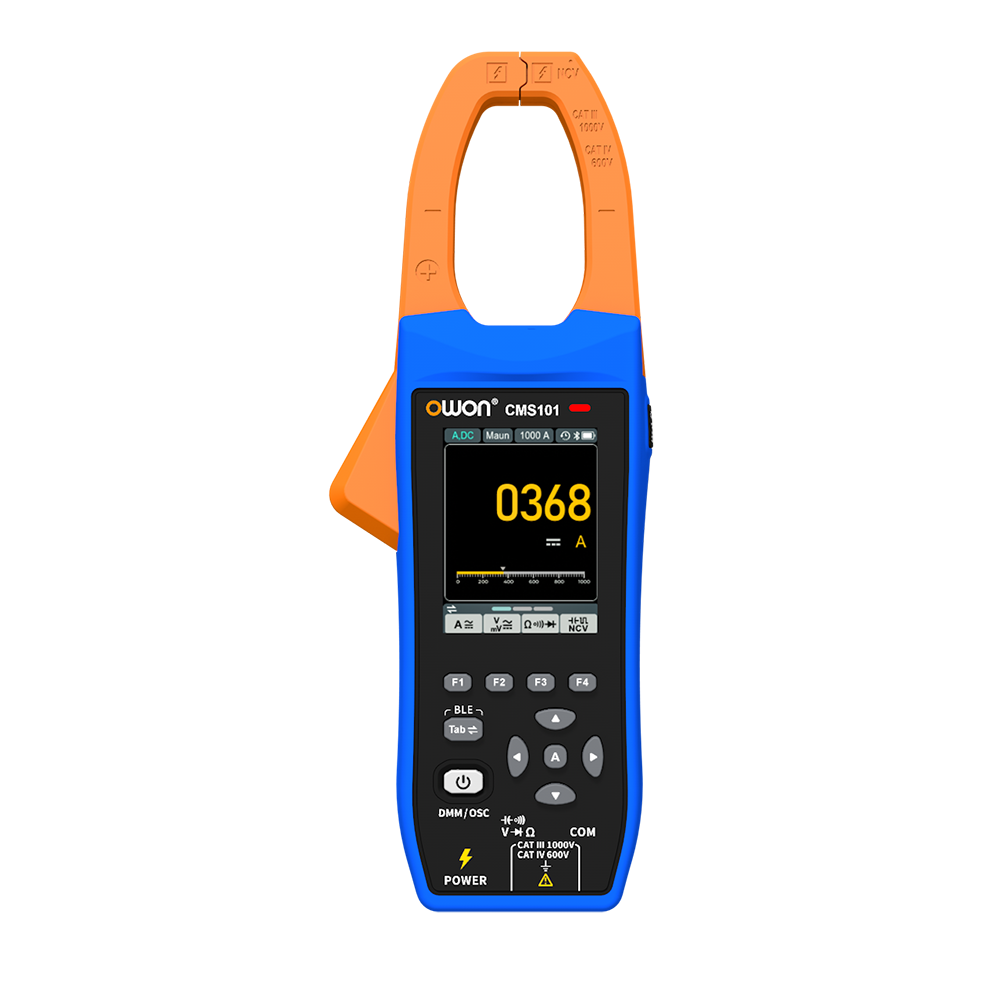

OWON CMS101 ອັດສະລິຍະ AC/DC Clamp Meter ແລະ Oscilloscope (1000AAC/DC,1000VAC/DC, True RMS)
Measurement Range:
DC Voltage (V): 20.000mV~1000A
AC Voltage（V）: 200.00mV~1000.0V
DC Current (A): 20.00A~1000A
AC Current（A）: 20.00A~1000A
Inrush Current（A）: 20.00A~1000A
Resistance（R）: 200.0Ω~100.00MΩ
Capacitance (F): 2.000nF~20.00mF
Frequency (Hz): 200.00Hz ~ 20.000MHz
Duty Cycle: 0.1%-99.9%（Typical: Vrms=1 V, f=100Hz); 0.1%-99.9%（≥1 kHz）
Oscilloscope Specification:
Analog bandwidth: 1MHz（Voltage）; 1kHz(Current)
Sample mode: Real-tine sample
Real-time sampling rate: 5.0MSa/S
Channel: 1
Input impedance: ≥10MΩ
Maximum input voltage: 1000V
Maximum sample current: 1000A
Scan speed: 2.5us/div~10S/div
Time base accuracy: ±(0.01%+0.1div)
Sensitivity: 30mV/div~500V/div
Displacement range: ±3 grid
Sensitivity accuracy: ±(5%+0.2div)
Measurement value: Rms、Period, Freq、Max、Min、PK-PK、Avg
Trigger mode: Auto
Trigger type: Rise、Fall
Other Function:
Bluetooth communication: A smart phone can be used to view the measurement data of the multimeter on the mobile phone side, perform remote control, display data charts, and store the measurement data in CSV format.
Automatic shutdown: When all functions are not used, the meter will automatically shut down in about 10 minutes.(the default is 10 minutes of automatic shutdown when starting, which can be canceled)
Display mode: DMM or OSC
Ture rms: √
Input protection: √
Backlight function: √
Return zero measurement: √
Digital hold: √
Low Battery Indication: √
Other:
Battery: Single section 18650 3.7V
LCD Size: 2.8 inch LCD
Dimension: 248mm（L） x 94.5mm（W） x 37.8mm（D）
