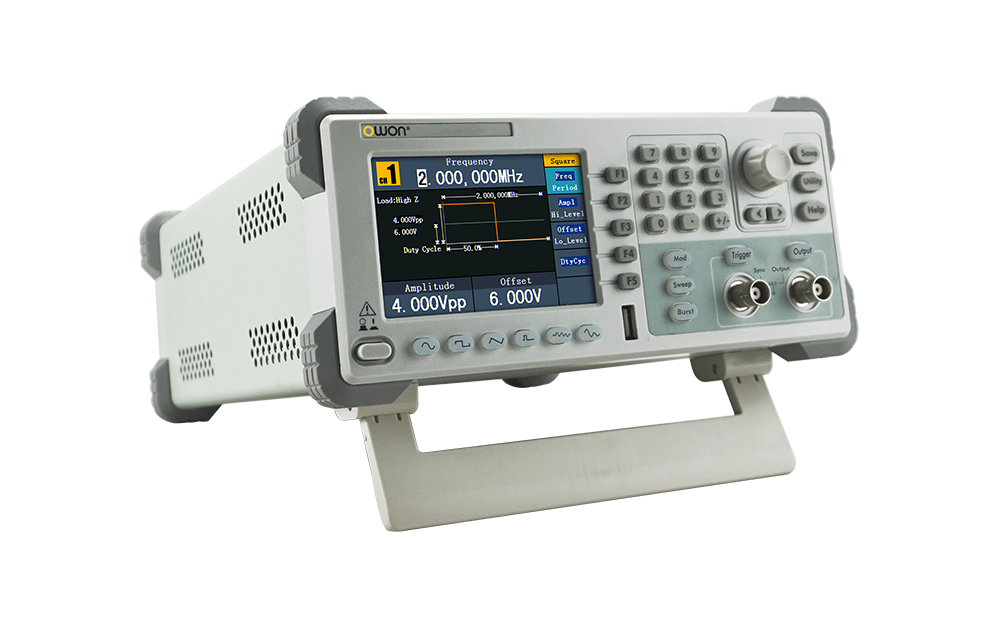

OWON AG1011 Low Frequency Arbitrary Waveform Generator (10MHz, 125MS/s, 1CH)
Channel: single
Frequency Output 10MHz
Sample Rate 125MS/s
Vertical Resolution 14 bits
Waveform Standard Sine, Square, Pulse, Ramp, and Noise Arbitrary
Waveform Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms, and user-defined arbitrary waveform.
Frequency (resolution 1μHz)
Sine 1μHz - 10MHz
Square 1μHz - 5MHz
Pulse 1μHz - 5MHz
Ramp 1μHz - 1MHz
Noise 5MHz (-3dB) (typical)
Arbitrary Waveform 1μHz - 5MHz
Memory 64M byte
Communication Interface USB device
Dimension (W×H×D) 235 × 110 × 295 (mm)
Weight (without package) 3.00 kg
Accessories: Power Cord, CD Rom, Quick Guide, USB, Q9 Cable
