Flow Rate: 70 L/min
Technology Employed: Pressure Swing Adsorption (PSA)
Output Pressure: 0 - 94 PSI, 0-6.5 bar
Purity: up to 99.99%
Moisture: < -50 °C dew point ATP
Air Input Characteristics:
Particulate ≤ 0.01 µm
Oil vapors ≤ 0.01 mg/m^3
Moisture ≤ 3°C dew point ATP
Pressure: .6 bar, .62 PSI
up to 170 L/min
Electrical Supply :
115 V +/- 10% 60 Hz 200 W
230 V +/- 10% 50 Hz 200 W
Protection Index : IP20
Operating Temperature: 41 °F - 104 °F (5°C - 40°C)
Environmental Humidity: 5 - 80%
Maximum Altitude:
2000 meters above sea level
6561.68 feet above sea level
Dimensions :
Height: 36" (92cm)
Width: 10" (26.5cm)
Depth: 29" (75cm)
Weight: 198 lbs (90 kg)
Data Connection: communicates via ModBus over TCP and Wi-FI

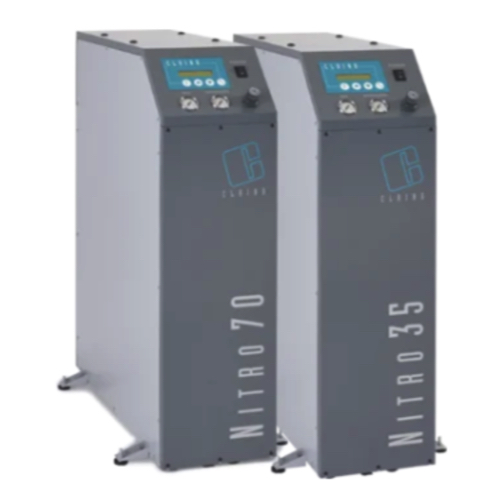

The NITRO is available in two models: the NITRO 35 with a capacity up to 35 L/min, and the NITRO 70 with a capacity up to 70 L/min. Both offer purity up to 99.99% with a dew point below -50°C and a hydrocarbon concentration of less than 0.01 ppm. A 24 liter internal tank reduces the time between stand-by periods. The unit is equipped with full turn wheels to facilitate ease of movement, as well as a state-of-the-art electronic touch screen display to view operating parameters and maintenance alerts. The NITRO also comes with access to the Claind4You portal, allowing for remote, secure, and independent control of the unit. Flexible communication with external systems using MODBUS, MQTT, and https protocols allows for full integration and control.
