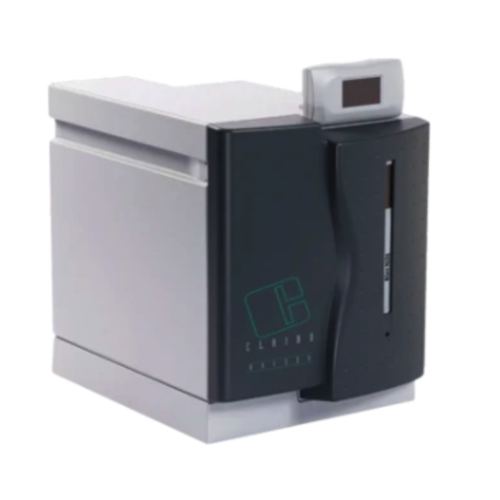

Organomation NiGen Micro ເຄື່ອງສ້າງໄນໂຕຣເຈນ (4 L/min)

Flow Rate: 4 L/min

Technology Employed: Claind's Pressure Swing Adsorption (PSA) Fast Purity Process

Output Pressure:

0 - 87 PSI

0 - 6 bar

Purity: up to 99.5%

Moisture: < -50 °C dew point ATP +/- 2 °C ATP

Air Input Characteristics:

Particulate ≤ 0.01 µm

Oil vapors ≤ 0.01 mg/m^3

Moisture ≤ 3°C dew point ATP

Min pressure: 8 bar

Min flow rate: 18 L/min

Electrical Supply: 115/230 V; +/- 10% 50-60 Hz 50 w

Protection Index: IP20

Noise:

< 50 dBA for 98% of operation time

< 60 dBA for 2 sec. each cycle

Operating Temperature: 41 °F - 95 °F (5°C - 35°C)

Environmental Humidity: maximum of 90% without condensation

Maximum Altitude :

2000 meters above sea level

6561.68 feet above sea level

Dimensions:

Height: 18.6" (47cm)

Width: 14.9" (38cm)

Depth: 20.8" (53cm)

Weight: 62lbs (28kg)

Pneumatic Connections:

Compressed air inlet: G 1/8" female

Nitrogen outlet: G 1/8" female

DESCRIPTION

The NiGen Micro is capable of distributing 4 L/min at a purity of up to 99.5%. It is ready to be connected to a dedicated AirComp compressor, and parallel connection allows for up to 4 stackable generators in a tower configuration. It features a CPU with touch screen display, which can be linked to a generator using CAN-BUS. This enables monitoring of the operating status and provides access to the maintenance menu, alarm reports, and functional parameters.
