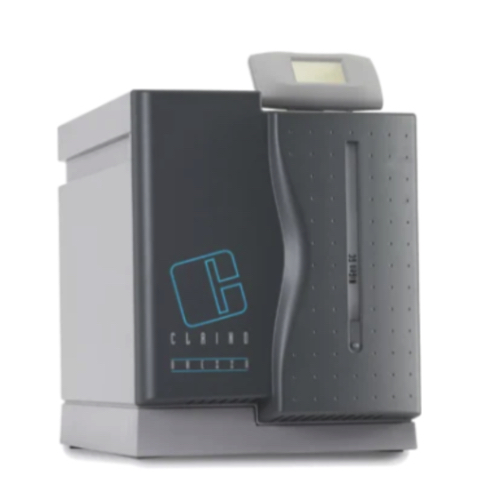

Organomation NiGen GC ເຄື່ອງສ້າງໄນໂຕຣເຈນ (500 ml/min)

Flow Rate: 500 mL/min

Technology Employed: Claind's Pressure Swing Adsorption (PSA) Fast Purity Process

Output Pressure:

0 - 87 PSI

0 - 6 bar

Purity: > 99.9995%

Total Hydrocarbons: < 0.1 ppm (for HC model only)

Air Input Characteristics:

Particulate ≤ 0.01 mm

Oil vapors ≤ 0.01 mg/m^3

Moisture ≤ 3 °C dew point ATP

Min pressure : 8 bar

Air flow rate: 6 L/min

Electrical Supply for NiGen GC: 115/230 V; +/- 10% 60-50 Hz 50 w

Electrical Supply for NiGen GC HC:

115 V +/- 10% 60 Hz 200 W

230 V +/- 10% 50 Hz 200 W

Protection Index: IP20

Noise:

< 50 dBA for 98% of operation time

< 60 dBA for 2 sec. each cycle

Operating Temperature: 40 °F - 100 °F (5 °C - 40 °C)

Environmental Humidity: maximum of 90% without condensation

Maximum Altitude:

2000 meters above sea level

6561.68 feet above sea level

Dimensions :

GC Height: 15.8" (40cm)

Width: 14.9" (38cm)

Depth: 20.8" (53cm)

Weight: GC: 63lbs (28kg)

Pneumatic Connections: Compressed air inlet : G 1/8” female

Nitrogen outlet: G 1/8” female

DESCRIPTION

The NiGen GC completely removes hydrocarbons using a Pt/Pd catalyzer. It is capable of distributing 500 mL/min with greater than 99.9995% purity. It's designed to be connected to a dedicated AirComp compressor (can be purchased separately). Parallel connection allows for up to 4 generators to be stacked in a tower configuration. It features a CPU with touch screen display, which can be linked to a generator using CAN-BUS. This enables monitoring of the operating status and provides access to the maintenance menu, alarm reports, and functional parameters. It is capable of supporting up to 12 FIDs or NPDs with makeup gas or up to 7 ECDs.
