Outgoing Nitrogen Flow at 8.5 bar, CMS 20°C:
99.999%: 33 L/min
99.99%: 55 L/min
99.9%: 115 L/min
99.5%: 191 L/min
99%: 250 L/min
98%: 306 L/min
97%: 345 L/min
Technology Employed: Claind's Pressure Swing Adsorption (PSA) Fast Purity Process
Inlet Air Specifications
Min Air Pressure 6.5 bar
Max Air Pressure: 13 bar
Quality: dry, clean, exhalation free
Must meet ISO 8573-1 Class 1.4.1 specifications
Nitrogen Outlet Pressure: 1.5 bar lower than the inlet pressure
Moisture: -50°C dew point ATP
Electrical Supply:
115 V +/- 10% 60 Hz
230 V +/- 10% 50 Hz
Power Rating: 50W
Protection Index: IP20
Noise: ≤ 60 dB (at 1 m from generator)
Operating Temperature 5 ÷ 40°C
Dimensions
Height: 138 cm
Depth: 40 cm
Width: 130 cm
Weight: 270 kg
DESCRIPTION

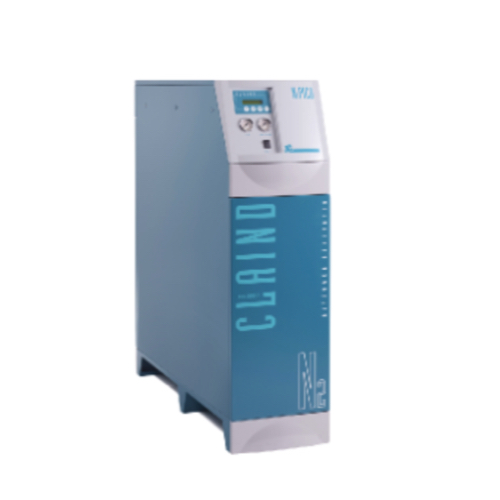

The N2 PICO comes with a purity analyzer and pressure regulator to allow for real-time monitoring of the nitrogen purity. It has a nitrogen storage tank for ease of use, allowing you to avoid the buffer tank. It features a digital control system that can be interfaced with company IT systems. If the nitrogen used is less than the amount produced, the generator automatically goes into energy-saving stand-by mode. A humidity and oil particle analyzer mounted on the suction line prevents impurities from passing through, protecting the operation of the generator and quality of the gas produced. E941 food purity option allows for different calibrations in order to meet specific customer needs.
