Opsytec Dr.Grobel BSM-03 ຊ່ອງຄອດ UV (2200 W)
ຜູ້ຜະລິດ: Opsytec Dr.Grobel Model: BSM-03 P/N: 860813 ທີ່ມາ: Germany ຮັບປະກັນ: 12 Tháng - ຕິດຕໍ່ພົວພັນ
Interior chamber: 60 x 40 x 25 cm
Dimensions: 77 x 62 x 80 cm
Weight: ~ 80 kg
Power consumption
2200 W (irradiation)
850 W (stand-by)
Mains: 230 VAC, 10 A
Power factor: 0,9
Operation temperature: 15 to 30 °C
Humidity: < 80%, non condensing
Lamp lifetime: 1.000 h to 3.000 h, typical
Number of lamps: 1 piece
Sample temperature: 45 °C +/- 10 °C
Spectra ranges: 1 Standard, 2-4 optional
Irradiance: up to 150 mW/cm²
Available lamps: HG, Fe, Ga
Shutter control: Pneumatic, 4-6 bar
Cooling: 1 x DN 100
Delivery
BSH-02, cable, manual, UVC lamps (ozone free, if not specified)
Features

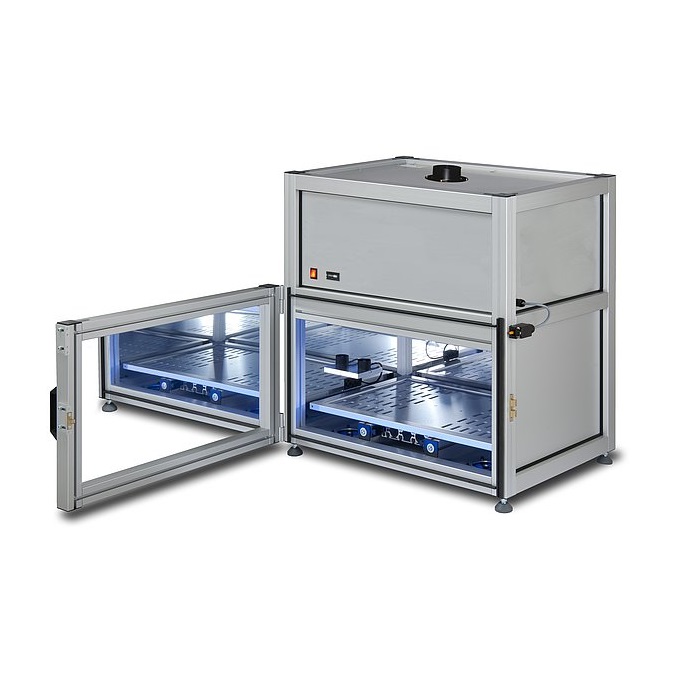

The BSM-03 UV curing chamber with an output of 2 kW is best suited for large-area UV curing, hardening, and bonding. The internal shutter is controlled by the UV-MAT for an accurate dose so that reproducible exposure is achieved even with medium-pressure lamps. With irradiance of 150 mW/cm², the required dose is typically achieved within several seconds.
The UV curing chamber can be opened for loading and unloading while the lamp is on. The shutter is monitored and closed with a safety circuit so that no UV radiation is emitted outside the chamber. The sliding sample support also facilitates loading and unloading. It withstands all loads up to 20 kg. With 60 x 40 cm at the base and a height of 25 cm, the irradiation room offers plenty of space. The sample chamber temperature is about 45°C in operation. Due to the high uniformity of the irradiation, the samples may be positioned in any order.
