Maximum Current: 15 Amps
RMS Voltage (V):
Accuracy: 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle
Resolution: 10 mV
RMS Current (A):
Accuracy: 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle
Resolution: 0.1 mA
Active Power (W):
Accuracy: 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle
Resolution: 10 mW down to 1 Watt loads at 120 V AC
Active Energy (Wh):
Accuracy: 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle
Resolution: 10 mWh
Power Factor:
Accuracy: ±0.02
Resolution: 0.01 PF
Operating Environment: Logging: 5° to 40°C (41° to 104°F); 0 to 95% RH (non-condensing), up to 2,000 m (6,562 ft) altitude
Logging Rate: 1 second to 18 hours, 12 minutes, 15 seconds
Statistics Sampling Rate: 60 Hz or 16.67 mS single-cycle
Time Accuracy: ±1 minute per month at 25°C (77°F)
Power Source: Line-powered with 0.92 m (3 ft) AC power cord or two AAA 1.5 V alkaline batteries, user replaceable
Memory: 4 MB (1.4 million measurements, maximum)
Size: 13.97 x 7.62 x 4.75 cm (5.5 x 3 x 1.87 in.)
Weight: 230.8 g (8.14 oz)
What's In The Box

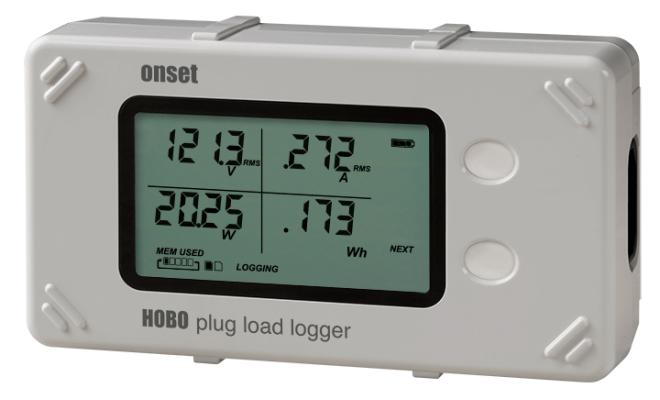

HOBO UX120-018 Plug Load Data Logger
AC power cord
