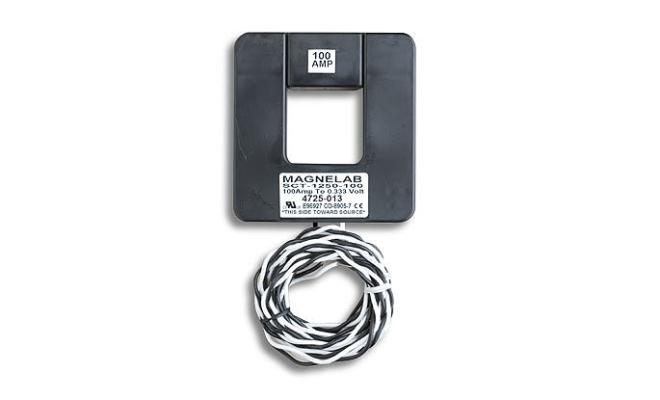

Onset T-MAG-SCT-100 100 AMP Split-core AC Current Transformer Sensor (0~100 Amp)

Rated input: from 0 Amp to 100 Amp

Output: 0.333 Volt AC at rated current

Operates: from 30 Hz to 1,000 Hz

Phase angle: < 2 degrees measured at 50% rated current

Linearity accuracy: ± 1%

8 ft. twisted-pair lead

Accuracy: at 10% to 130% of rated current

Custom output and other parameters are available

Width: 3.25 inches

Height: 3.35 inches

Thickness: 1.00 inches

Window: 1.25 inches

A 100 Amp CT that mounts around a current carrying wire to measure AC amperage; provides accurate current measurement for many types of equipment, including variable frequency drives and switched power sources. For use with HOBO H22, U30, and RX3000 Series Data Loggers
