Rated input: from 2 to 20 AMP
Output: 0.333 Volt AC at rated current
Operates: from 50 Hz to 400 Hz
Linearity accuracy: ± 1%
8 ft. twisted-pair lead
Accuracy: at 10% to 130% of rated current
Self-locking mechanism guaranteed for 500 closing
Width: 1.00 inches
Height: 1.56 inches
Thickness: 1.05 inches
Window: 0.40 inches

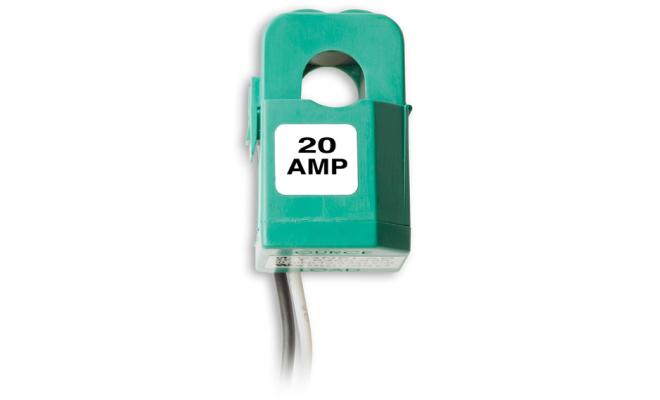

A small 20 AMP split-core AC Current Transformer (CT) mounted around a current carrying wire to measure AC amperage. This CT provides a .333 Volt AC output proportional to current flow and is used with HOBO data loggers via the FlexSmart TRMS module and with kWh transducers (WattNodes) for True RMS measurement of sinusoidal and non-sinusoidal waveforms. The result is an accurate current measurement for many types of electrical equipment. For use with HOBO H22, U30, and RX3000 Series Data Loggers
Manual
