Measurement ranges: 500 psig
Compensated temp range: -40° to 125°C (-40° to 257°F)
Accuracy:
±1% FS from -20° to 85°C (-4° to 185°F)
±1.5% FS -40° to -20°C and 85° to 125°C (-40° to –4°F and 185° to 257°F)
Non-linearity: less than ±0.1% of span typical
Non-repeatability: less than ±0.03% of span typical
Hysteresis: less than ±0.01 of span typical
Stability: less than ±0.25% of span/year
Durability: tested to 50 million cycles
Overpressure: 200% FS
Response time: less than 1 msec
Sensor Connections:
Output signal: 0-5 VDC, 3 wire
Power: 9-36 VDC, 5mA
Warm-up Time: <500ms
Operating temp range: -40° to 125°C (-40° to 257°F)
Operating humidity range: 0 to 100% RH, no effect
Insulation breakdown voltage: 100 VAC
Insulation resistance: greater than 100 megohms at 100 VDC
Dimensions: 2.9 cm diameter x 6.4 cm long (1.15 in. diameter x 2.5 in. long)
Outer cable diameter dimension: 0.21 in. (5.4-mm)
Weight: 89.4g (3.15oz)
Number of data channels: 1

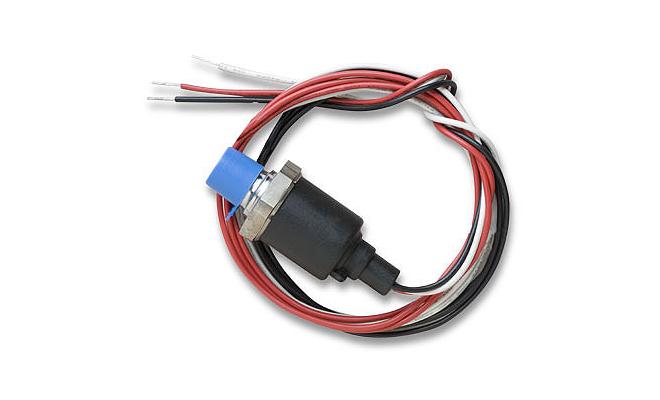

The Ashcroft Gauge Pressure Sensor provides precision pressure measurements in compressed air systems, water, or other compatible gases and fluids, with an accuracy of ±1% FS from -20° to 85°C (-4° to 185°F) and only ±1.5% FS -40° to -20°C and 85° to 125°C (-40° to -4°F and 185° to 257°F).
Requirements for use with specific data loggers:
HOBO MX1100 series: a 0-5 Volt DC input cable (SD-VOLT-05) and external power provided by an AC adapter (AC-SENS-1)
HOBO U12, UX120-006M or ZW series: a 0-5 Volt DC input cable (CABLE-ADAP5) and external power provided by an AC adapter (AC-SENS-1)
HOBO RX3000: an analog input module (RXMOD-A1)
HOBO U30: an analog input module (VIA)
HOBO H22: an analog input module (S-FS-CVIA)
