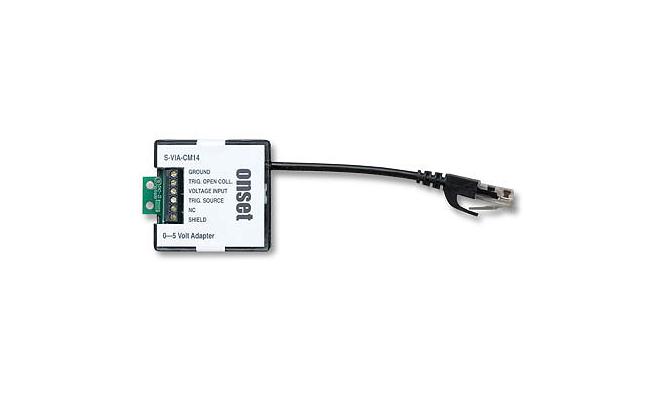

Onset S-VIA-CM14 ເຊັນເຊີອະແດັບເຕີແຮງດັນຂາເຂົ້າ 12-ບິດ (0-5 V DC)

Measurement range: 0-5 V DC

Accuracy: ±10mV ±0.3% of reading (over operating temperature range)

Resolution: ±1.221 millivolts

Input impedance: 1 Megohms

Sensor trigger open collector: Maximum sink current: 115 mA; 30V maximum

Sensor trigger source: Voltage: 2.5 V ±2.4%; maximum current: 1 mA

Measurement time: 2.4 ms ±3%

Cable length: 14 cm (5.5 inch)

Dimensions: 4.5 x 4.8 x 1.6 cm (1.8 x 1.9 x 0.6 in.)

Weight: 25 g (0.88 oz)

Items Included:

Hook and loop tape

Cable ties

The 12-Bit 0-5 Volt Input Adapter is used for measuring voltage levels and provides a trigger source voltage for powering external sensors and an open collector trigger. The input adapter has a plug-in modular connector that allows it to be added easily to a logger. For the HOBO Micro Station, you can place the input adapter inside the logger enclosure and allow it to float freely. It is not necessary to use the hook-and-loop tape.
