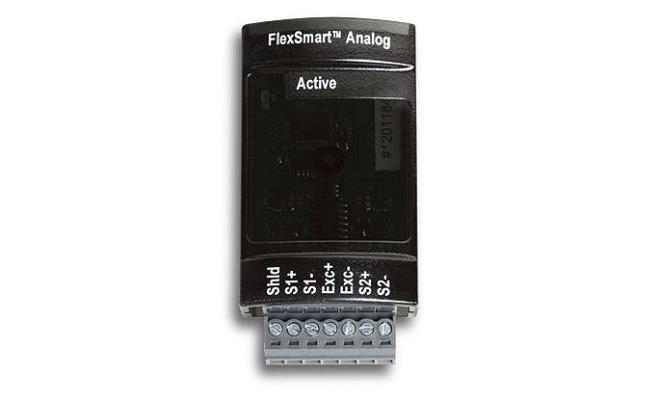

Onset S-FS-CVIA FlexSmart Analog Module (2 ຊ່ອງ) ເຊັນເຊີ (0-20mA, 0-20VDC)

Input channels: 2 single-ended

User-configurable ranges: 0-20mA, 0-20VDC (suitable for 2.5, 5, and 10V sensors)

Accuracy: ±0.25% FS over range selected from 50mV to FS

A/D accuracy: ±0.05%

A/D drift: 5 ppm/°C

Resolution: 12-bit

Excitation power: 12V DC @ up to 200mA switched, with up to 2-minute warm-up in 5 msec increments

Field wiring: 2- or 3-wire via screw terminals

For use with the H22 Energy Logger, this module handles two single-ended input channels with user-configurable ranges of 0 to 20mA DC or 0 to 20 V DC, which is suitable for 2.5-, 5-, and 10-volt sensors. Field wiring is 2- or 3-wire via screw terminals.
