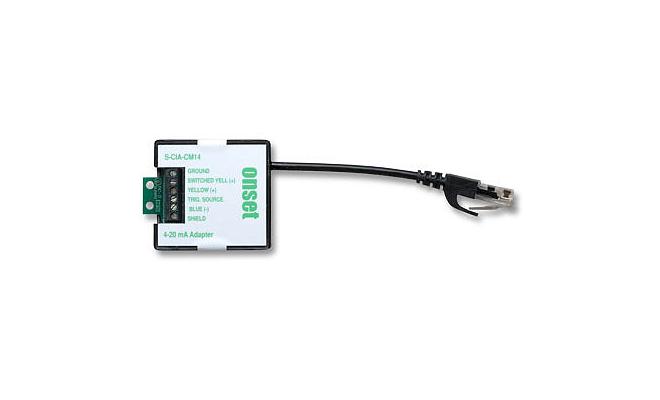

Onset S-CIA-CM14 ເຊັນເຊີອະແດບເຕີປ້ອນຂໍ້ມູນ 12-bit 4-20 mA (4-20 mA)

Measurement range: 4-20 mA (measures down to 0 mA to detect error condition)

Operating temperature range: -40° to 75°C (-40° to 167°F)

Accuracy: ±40 µA ±0.3% of reading (over operating temperature range)

Resolution: ±4.93 µA

Input impedance: 124 ohms (differential input)

Sensor trigger source: Voltage: 2.5 V ±2.4%; maximum current: 1 mA

Warm-up time: 300 ms ±3% (fixed)

Measurement time: 16.6 ms ±3% to filter out 60 Hz noise

Cable length: 14 cm (5.5 inch)

Items Included:

Hook and loop tape

Cable ties

Interfaces with any sensor providing a 4-20 mA signal to connect to HOBO stations compatible with Smart Sensors. This adapter features both a non-switched input and a battery-saving switched input that extends the life of external batteries. It also provides a trigger signal for controlling power to attached external sensors, while offering digital filtering that improves measurement accuracy with 32 readings/sample and 60 Hz noise rejection.
