916–924 MHz
Sensor:
Measurement Input Frequency: 2 Hz (2 pulses per second)
Measurement Range: 0-65,533 pulses per logging interval
Resolution: 1 pulse
Lockout Time: 327 ms ±10%
Minimum Pulse Width: 1 ms
Input/Output Impedance: 100 KΩ
Open Circuit Input Voltage: 3.3 V
Maximum Input Voltage: 3.6 V
Wireless Mote:
Operating Temperature Range:
-25° to 60°C (-13° to 140°F) with rechargeable batteries
-40 to 70°C (-40 to 158°F) with lithium batteries
Data Rate: Up to 250 kbps, non-adjustable
Logging Rate: 1 minute to 18 hours
Number of Data Channels: 2
Battery Type/Power Source: Two AA 1.2 V rechargeable NiMH batteries powered by built-in solar panel or two AA 1.5 V lithium batteries for operating conditions of -40° to 70°C (-40° to 158°F)
Memory: 16 MB
Dimensions:
Cable length: 6.5 m (21.3 ft.)
Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)
Weight:
Cable: 250 g (9 oz)
Mote: 223 g (7.87 oz)
What's In The Box

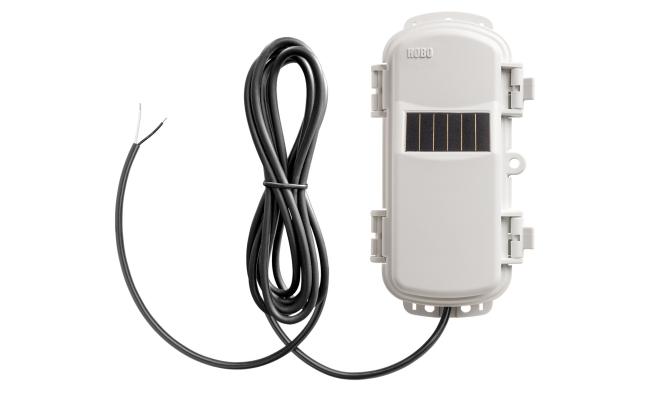

HOBOnet Pulse Input - Electronic Switch Sensor
Zip ties and screws for mounting
A wireless pulse input sensor that connects to sensors with pulse output. This sensor is compatible with contact closures, such as tipping-bucket rain gauges or reed switches. HOBOnet wireless sensors communicate data directly to the HOBO RX3000 or the HOBO MicroRX station, or pass data through other wireless sensors back to the central station. They are preconfigured and ready to deploy, and data is accessed through HOBOlink, Onset's innovative cloud software platform.
Manual
