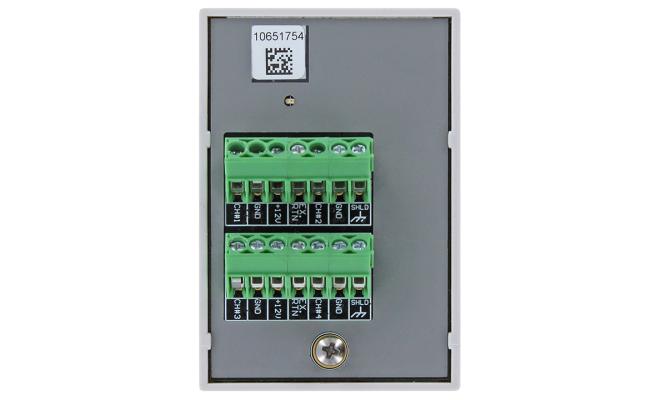

Onset RXMOD-A1 RX3000 ໂມດູນອະນາລັອກ 4 ຊ່ອງ (0–33 V DC)

Input Channels: Four, single-ended, in addition to smart sensor data channels

Measurement Range and Accuracy:

0–25.6 mA DC, ±5 µA ± 0.15% of reading

0–2.5 V DC, ±0.25 mV ±0.2% of reading

0–5 V DC, ±0.25 mV ±0.2% of reading

0–10 V DC, ±0.3 mV ±0.2% of reading

0–20 V DC, ±0.6 mV ±0.2% of reading

0–33 V DC, ±1.20 mV ±0.2% of reading

Resolution: 15 bits

Field Wiring: Two- or three-wire via screw terminals, 16–24 AWG

Minimum/Maximum Input Voltage: 0/33 V DC

Minimum/Maximum Input Current: 0/25.6 mA

Minimum Source Impedance for Current Measurement: 20 KΩ

Excitation Voltage: 12 V DC ±5% at 200 mA maximum per module

An optional analog module with four analog inputs that support excitation power, scaling, and statistics measurements. These four, single-ended sensor inputs are configured through HOBOlink. A HOBO RX3000 is required for this product.
