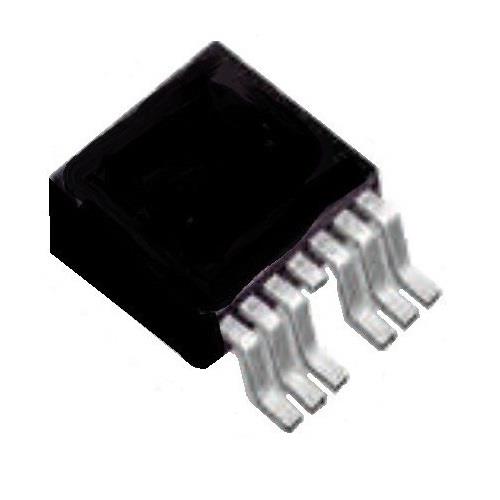

onsemi NCV8505D2T50R4G ຕົວຄວບຄຸມແຮງແສງ LDO 5.0V 400mA ມີ ENABLE

Width: 9.53 mm

Height: 4.57 mm

Length: 10.67 mm

Polarity: Positive

Output Type: Fixed

Unit Weight: 1.600 g

REACH - SVHC: Details

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Output Current: 400 mA

Output Voltage: 5 V

Dropout Voltage: 400 mV

Line Regulation: 25 mV

Load Regulation: 30 mV

Number of Outputs: 1 Output

Quiescent Current: 45 mA

Moisture Sensitive: Yes

Input Voltage - Max: 45 V

Input Voltage - Min: - 15 V

Dropout Voltage - Max: 600 mV at 400 mA

Ib - Input Bias Current: 25 mA

Voltage Regulation Accuracy: 2 %

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C
