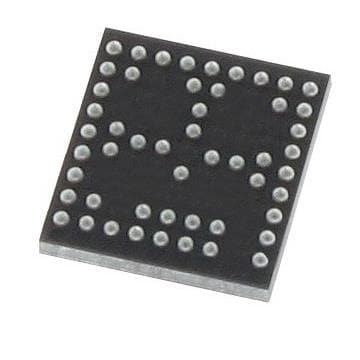

onsemi NCH-RSL10-101WC51-ABG Bluetooth Ultra Low Power SoC 51 Bump WLCSP

Core: ARM Cortex M3

Width: 2.364 mm

Height: 0.35 mm

Length: 2.325 mm

Technology: Si

Sensitivity: - 94 dBm

Unit Weight: 1 g

Output Power: 6 dBm

Data RAM Size: 76 kB, 88 kB

Data RAM Type: SRAM

Data Bus Width: 32 bit

Interface Type: GPIO, I2C, PCM, SPI, UART

Mounting Style: SMD/SMT

Maximum Data Rate: 2 Mbps

Operating Frequency: 2.4 GHz

Program Memory Size: 384 kB

Program Memory Type: Flash

Supply Voltage - Max: 3.3 V

Supply Voltage - Min: 1.1 V

Maximum Clock Frequency: 48 MHz

Supply Current Receiving: 5.6 mA

Supply Current Transmitting: 8.9 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
