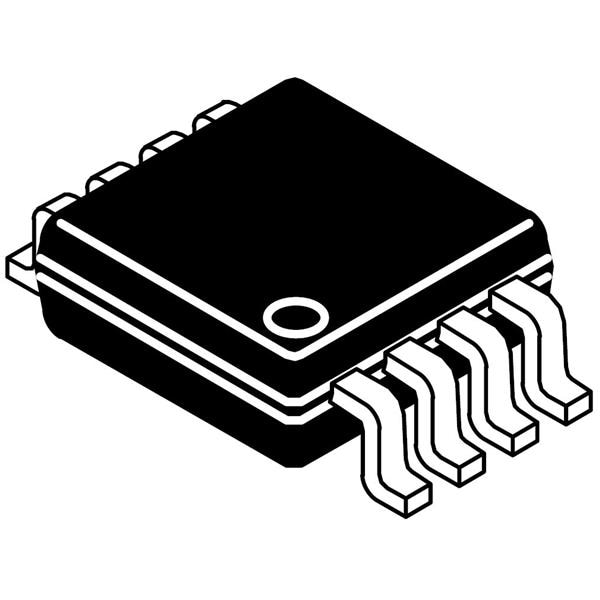

onsemi LMV393DMR2G ຕຽມປຽບທີ່ແຮງແຮງຕ່ຳ LV DUAL COMP

Width: 3 mm

Height: 0.95 mm

Length: 3 mm

Shutdown: No Shutdown

Output Type: Open Drain

Supply Type: Single

Unit Weight: 31.120 mg

Response Time: 1 us

Mounting Style: SMD/SMT

Comparator Type: General Purpose

Voltage Gain dB: 93.98 dB

Number of Channels: 2 Channel

Supply Voltage - Max: 5 V

Supply Voltage - Min: 2.7 V

Ib - Input Bias Current: 1 nA

Operating Supply Current: 140 uA

Operating Supply Voltage: 3 V

Output Current per Channel: 84 mA

Vos - Input Offset Voltage: 9 mV

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C
