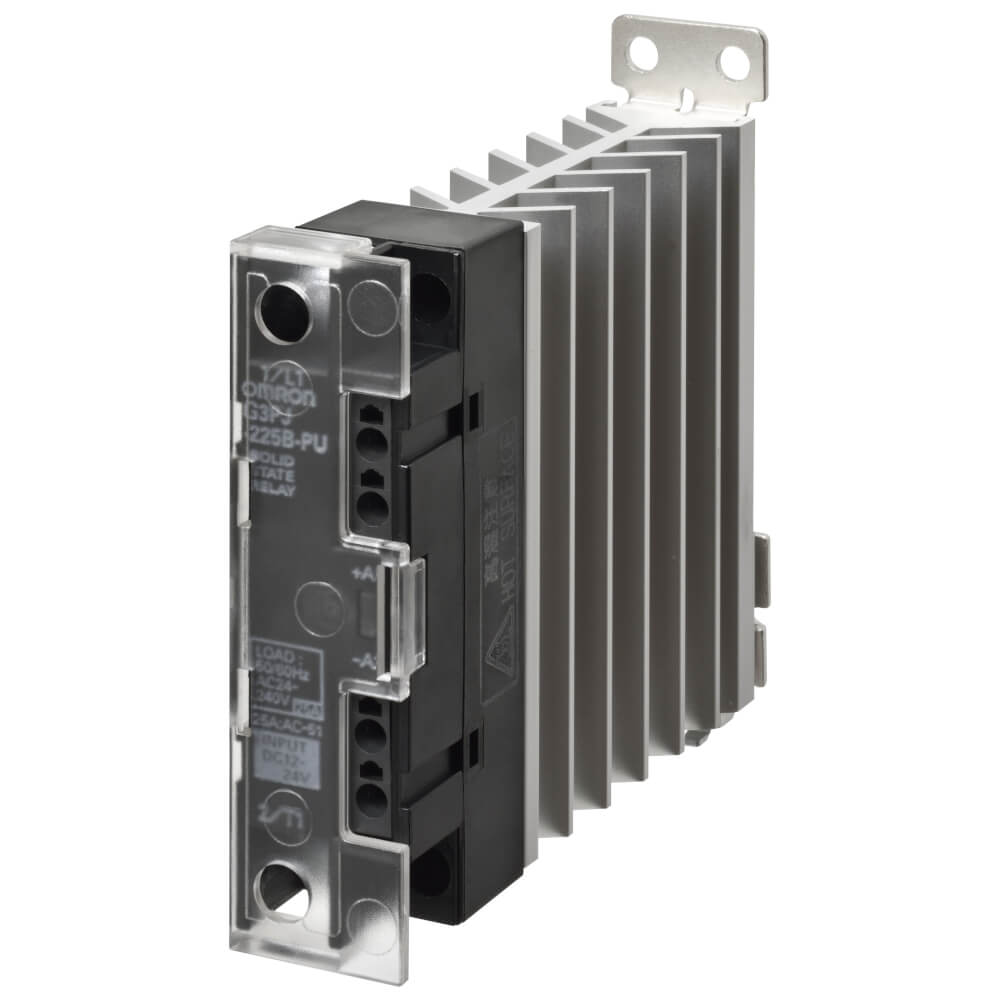

OMRON G3PJ-225B-PU DC12-24 Solid State Relay ສໍາລັບເຄື່ອງເຮັດຄວາມຮ້ອນ (1 phase, DC12-24)
Application: Power control
Number of phases: 1
Number of poles: 1
Mounting method: DIN rail/screw
Terminal: Push-in, Screw
Complete with socket: X
LED indicator: ✓
Rated operational voltage, AC: 24-240 V
Operating voltage range, AC: 19-264 V
Rated operation current Ie at AC-1: 27 A
Rated load current Close mounting: 25 A
Permissible I²t value: 1260 A²s
Product Height (unpacked): 100 mm
Product Width (unpacked): 22.5 mm
Product Depth (unpacked): 100 mm
Supply voltage DC: 12-24 V
Control current max.: 7 mA
Must operate voltage max.: 9.6 V
Must release voltage min.: 1 V
Maximum operating temperature: 80 °C
Minimum operating temperature: -30 °C
Isolation: Phototriac
Switching at zero-crossing: ✓
